Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

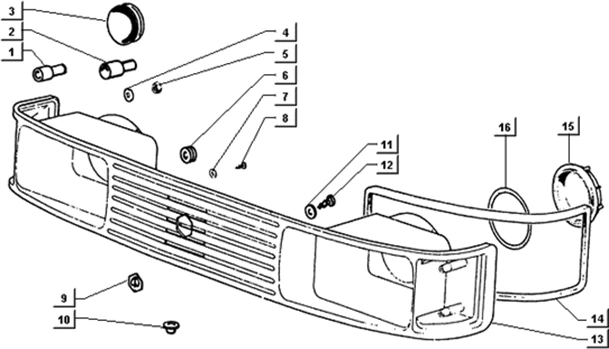

Châssis : T61 PROTECTION PORTE-PROJECTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/330/Ape_TM_703_Diesel_422CC_1997-2004_T61_20251008101122.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/2/img/65662.jpg)
1 |
073943 - CAPUCHON More informationQuantity required : 2 |
||||||
2 |
197370 - CACHE ISOLANT More informationQuantity required : 2 |
||||||
|
3 |
197369 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
4 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
5 |
020106 - ECROU S02010600 More informationQuantity required : 4 |
||||||
|
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
7 |
003054 - RONDELLE S00305400 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
8 |
SCREW - -008432 More informationQuantity required : 4 |
||||||
|
9 |
ECUSSON PIAGGIO |
||||||
|
9 |
565707 - ECUSSON More informationQuantity required : 1 |
||||||
|
10 |
128009 - CAPSULE More informationQuantity required : 2 |
||||||
|
11 |
003054 - RONDELLE S00305400 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
12 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" 125 VESPA PX, APE -121668 More informationQuantity required : 8 |
||||||
|
13 |
5656646 - CALANDRE AV More informationQuantity required : 1 |
||||||
|
14 |
214134 - JOINT More informationQuantity required : 2 |
||||||
|
15 |
213809 - COUVERCLE More informationQuantity required : 2 |
||||||
|
16 |
213793 - JOINT More informationQuantity required : 2 |
