Vehicle Exploded View - APRILIA ETX 150 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

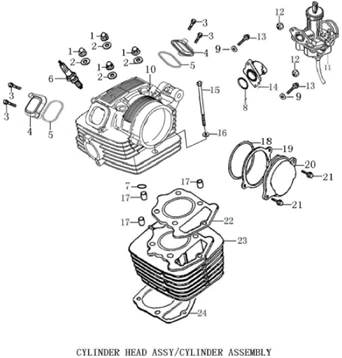

Motore : 02.01 ENSEMBLE CULASSE/CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/295/ETX_150_2014_02.01.PNG)
1 |
ECROU M8×18 |
||||||
|
2 |
Rondelle |
||||||
|
3 |
BOULON M6×18 |
||||||
|
4 |
COUVERCLE |
||||||
|
5 |
Bague |
||||||
|
6 |
Bougie |
||||||
|
7 |
Joint torique 10×1.6 |
||||||
|
8 |
Circlips 33.5×3 |
||||||
|
9 |
RONDELLE |
||||||
|
10 |
Culasse |
||||||
|
11 |
Carburateur |
||||||
|
12 |
Ecrou |
||||||
|
13 |
BOULON M6×20 |
||||||
|
14 |
Tuyau |
||||||
|
15 |
BOULON M6×110 |
||||||
|
16 |
Rondelle |
||||||
|
17 |
Pivot |
||||||
|
18 |
Joint torique 75×2.65 |
||||||
|
19 |
JOINT TÊTE-CYLINDRE |
||||||
|
20 |
COUVERCLE |
||||||
|
21 |
BOULON M6×20 |
||||||
|
22 |
JOINT |
||||||
|
23 |
Gr.cil. |
||||||
|
24 |
JOINT |
