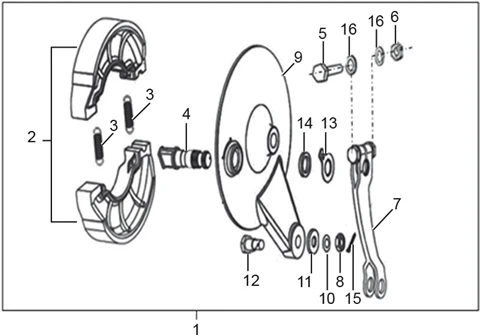

Telaio : 01.18 ENSEMBLE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/295/ETX_150_2014_01.18.PNG)
1 |
Frein arriere |
||||||
|
2 |
Plaquette frein |
||||||
|
3 |
Ressort |
||||||
|
4 |
Actionneur |
||||||
|
5 |
Ecrou |
||||||
|
6 |
Ecrou |
||||||
|
7 |
Levier frein |
||||||
|
8 |
Ecrou |
||||||
|
9 |
Couvercle |
||||||
|
10 |
RONDELLE |
||||||
|
11 |
RONDELLE |
||||||
|
12 |
BOULON M8×1.25×32 |
||||||
|
13 |
Circlips |
||||||
|
14 |
RB000291 - OIL SEAL More informationQuantity required : 1 |
||||||
|
15 |
Pivot |
||||||
|
16 |
RONDELLA PIANA Ø6 |
