Vehicle Exploded View - APRILIA ETX 150 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

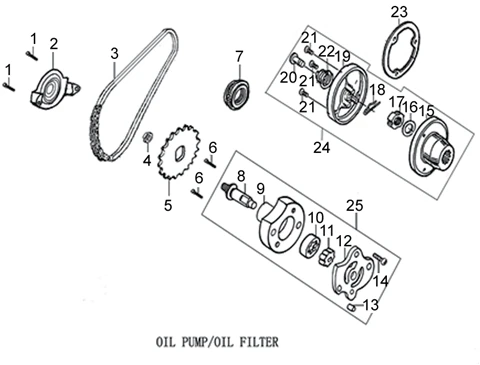

Motore : 02.05 POMPE À HUILE/FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/295/ETX_150_2014_02.05.PNG)
1 |
BOULON M6×12 |
||||||
|
2 |
Couvercle |
||||||
|
3 |
CHAÎNE POMPE HUILE |
||||||
|
4 |
Ecrou |
||||||
|
5 |
COURONNE |
||||||
|
6 |
BOULON M6×32 |
||||||
|
7 |
Couronne |
||||||
|
8 |
ARBRE POMPE HUILE |
||||||
|
9 |
ETRIER DE FREIN |
||||||
|
10 |
POMPE HUILE |
||||||
|
11 |
Pompe huile |
||||||
|
12 |
Couvercle |
||||||
|
13 |
Pivot |
||||||
|
14 |
Vis |
||||||
|
15 |
Rotor |
||||||
|
16 |
RONDELLE |
||||||
|
17 |
Ecrou |
||||||
|
18 |
Pivot |
||||||
|
19 |
Couvercle |
||||||
|
20 |
Tuyau huile |
||||||
|
21 |
Vis |
||||||
|
22 |
Ressort |
||||||
|
23 |
JOINT |
||||||
|
24 |
ENSEMBLE FILTRE A HUILE |
||||||
|
25 |
Pompe à huile complète |
