Vehicle Exploded View - APRILIA ETX 150 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

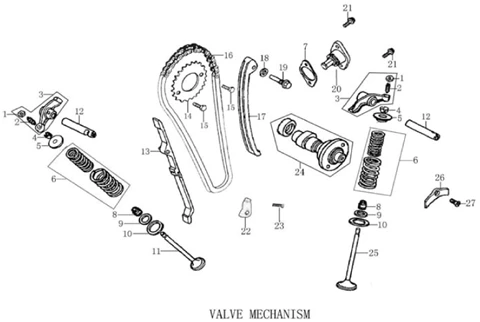

Motore : 02.02 MÉCANISME DE SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/295/ETX_150_2014_02.02.PNG)
1 |
ECROU |
||||||
|
2 |
VIS |
||||||
|
3 |
BOISSEAU |
||||||
|
4 |
Pivot |
||||||
|
5 |
Siège soupape |
||||||
|
6 |
GR.RESSORT |
||||||
|
7 |
JOINT |
||||||
|
8 |
JOINT |
||||||
|
9 |
Siège soupape |
||||||
|
10 |
BAGUE D'ÉTANCHÉITÉ |
||||||
|
11 |
Soupape échappement |
||||||
|
12 |
BALANC-N |
||||||
|
13 |
Plaque |
||||||
|
14 |
Engrenage |
||||||
|
15 |
BOULON |
||||||
|
16 |
Chaîne |
||||||
|
17 |
GR.RESSORT |
||||||
|
18 |
Rondelle |
||||||
|
19 |
BOULON |
||||||
|
20 |
BOUCHON |
||||||
|
21 |
Vis |
||||||
|
22 |
Plaque |
||||||
|
23 |
BOULON |
||||||
|
24 |
Arbre à came complet |
||||||
|
25 |
Soupape d’admission |
||||||
|
26 |
PLAQUE |
||||||
|
27 |
Vis |
