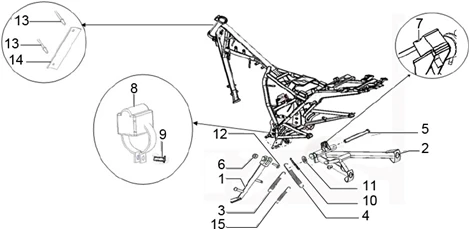

Telaio : 01.38 BÉQUILLE CENTRALE ET BÉQUILLE LATÉRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/295/ETX_150_2014_01.38.PNG)
1 |
Béquille latérale |
||||||
|
2 |
Béquille centrale |
||||||
|
3 |
Ressort |
||||||
|
4 |
Ressort |
||||||
|
5 |
Axe de béquille |
||||||
|
6 |
Ecrou |
||||||
|
7 |
RONDELLE |
||||||
|
8 |
Tampon |
||||||
|
9 |
Vis |
||||||
|
10 |
Pivot |
||||||
|
11 |
Rondelle |
||||||
|
12 |
BOULON M10×1.25×35-19 |
||||||
|
13 |
RIVET |
||||||
|
14 |
MONOGRAMME |
||||||
|
15 |
Ressort |
