Vehicle Exploded View - APRILIA ETX 150 2014 APRILIA

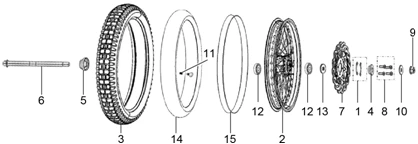

Telaio : 01.12 ROUE AVANT A RAYONS
Roue avant a rayons
Search
RONDELLE

1
P2R reference P2R reference
Maker reference Maker reference RB000273

RONDELLE

Pneu avant

2
P2R reference P2R reference
Maker reference Maker reference RB000248

Pneu avant

Pneu avant

3
P2R reference P2R reference
Maker reference Maker reference RB000244

Pneu avant

Entretoise

4
P2R reference P2R reference
Maker reference Maker reference RB000242

Entretoise

Renvoi compteur km

5
P2R reference P2R reference
Maker reference Maker reference RB000482

Renvoi compteur km

Axe de roue AV

6
P2R reference P2R reference
Maker reference Maker reference RB000253

Axe de roue AV

DISQUE FREIN AVANT (?260MM)

7
P2R reference P2R reference
Maker reference Maker reference RB000271

DISQUE FREIN AVANT (?260MM)

BOULON M8×28

8
P2R reference P2R reference
Maker reference Maker reference RB000621

BOULON M8×28

Ecrou

9
P2R reference P2R reference
Maker reference Maker reference RB000663

Ecrou

RONDELLE

10
P2R reference P2R reference
Maker reference Maker reference RB000596

RONDELLE

Soupape pression

11
P2R reference P2R reference
Maker reference Maker reference RB000246

Soupape pression

Roulement

12
P2R reference P2R reference
Maker reference Maker reference RB000552

Roulement

Joint spi

13
P2R reference P2R reference
Maker reference Maker reference RB000251

Joint spi

Pneu avant

14
P2R reference P2R reference
Maker reference Maker reference RB000245

Pneu avant

Pare clau

15
P2R reference P2R reference
Maker reference Maker reference RB000259

Pare clau
