Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

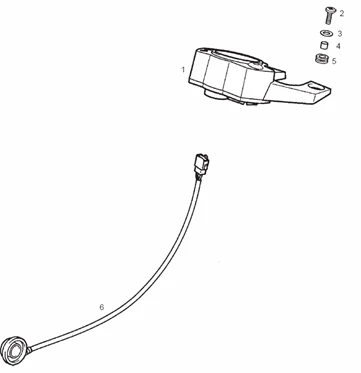

Tables : 11 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1080/Senda_R_50_Black_Devil_2_edicion_2003_EMEA_11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/8/6/img/64586.jpg)
1 |
DASHBOARD "PIAGGIO GENUINE PART" DERBI DRD RACING 2005> -00H01632521 More informationQuantity required : 1 |
||||||
1 |
00H01627521 - BOITIER TABLEAU BORD (M/H) More informationQuantity required : 1 |
||||||
|
1 |
00H01633521 - BOITIER TABLEAU BORD (KM/H) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
2 |
SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
3 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
4 |
00H01600911 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
5 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/7/img/70887.jpg)
6 |
SPEED SENSOR "PIAGGIO GENUINE PART" GILERA 125 SC/APRILIA 50 RX, SX, RS4 -898626 More informationQuantity required : 1 |
