Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

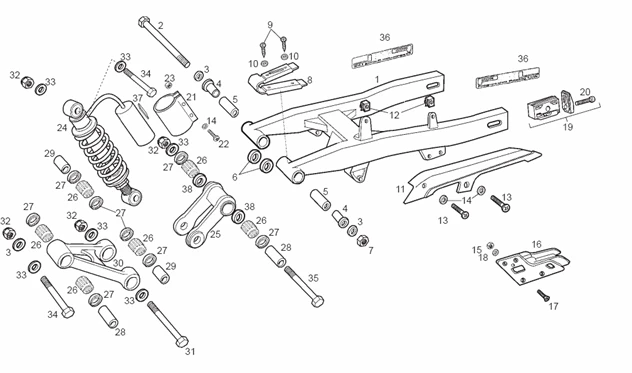

Tables : 3 FOURCHE ARRIERE - AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1080/Senda_R_50_Black_Devil_2_edicion_2003_EMEA_3.png)
1 |
2B0047175 - FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/7/6/img/94876.jpg)
1 |
SUSPENSION ARM "PIAGGIO GENUINE PART" GILERA 50 SMT RACING 2011> -B045012 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/4/img/64484.jpg)
2 |
REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 MM -00H013042025 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/9/img/63879.jpg)
3 |
WASHER FOR MOTOR SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01300192 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/0/img/63630.jpg)
4 |
SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002503230 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/7/img/64217.jpg)
5 |
SPACER- FOR SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00301401 More informationQuantity required : 1 |
|||||||||
|
6 |
WASHER FOR MOTOR SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01300192 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/8/img/63768.jpg)
7 |
NUT - INDESSERABLE M12X150 FOR REAR WHEEL/ENGINE SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00262120032 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/3/img/64623.jpg)
8 |
CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01804331 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
9 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
10 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/7/img/64557.jpg)
11 |
CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01508181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
13 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
14 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
|||||||||
|
15 |
|
|||||||||
|
16 |
00H01502871 - GUIDE CHAINE More informationQuantity required : 1 |
|||||||||
|
17 |
00013061200 - VIS T. CREUSE More informationQuantity required : 1 |
|||||||||
|
18 |
BOULON S03105900 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/5/img/64485.jpg)
19 |
WHEEL TENSIONER "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PARTS" GILERA 50 GPR 1998>2005 -00H01304811 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/2/img/64462.jpg)
20 |
SCREW - FOR CHAIN TENSIONER (8X50) "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00H01301491 More informationQuantity required : 1 |
|||||||||
|
21 |
00H02201521 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
22 |
00012063000 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/6/img/63586.jpg)
23 |
NUT (6M100) "PIAGGIO GENUINE PART" -00000021060 More informationQuantity required : 1 |
|||||||||
|
24 |
00H01511192 - AMORTISSEUR More informationQuantity required : 1 |
|||||||||
|
25 |
00H00301801 - S/ENSEMBLE BIELLE ARTICULATION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/8/img/64218.jpg)
26 |
ROLLER BEARING FOR REAR SUSPENSION LINK "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX FACTORY -00H00301701 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/2/2/img/64222.jpg)
27 |
GASKET FOR BEARING/REAR SUSPENSION LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00301871 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/2/0/img/64220.jpg)
28 |
REAR SUSPENSION BUSH "PIAGGIO GENUINE PART" GILERA 50 SMT RACING/APRILIA 50 SX, RX FACTORY -00H00301851 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/2/1/img/64221.jpg)
29 |
00H00301861 - DOUILLE INTVRIEURE BIELLE ARTI More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/0/img/70040.jpg)
30 |
863989 - S/ENSEMBLE BIELLE TRIANGLE ART More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/5/img/64215.jpg)
31 |
SCREW - FOR REAR SHOCK ABSORBER (12M17) "PIAGGIO GENUINE PARTS" GILERA 50 SMT RACING/APRILIA 50 SX, RX FACTORY -00H00300891 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/6/img/63716.jpg)
32 |
NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/2/7/img/64527.jpg)
33 |
00H01500421 - RONDELLE FIXATION INFERIEUR AM More informationQuantity required : 1 |
|||||||||
|
34 |
00H06800471 - VIS FIXATION BIELLE AMORTISSEUR More informationQuantity required : 1 |
|||||||||
|
35 |
00H00301891 - VIS FIXATION AMORTISSEUR More informationQuantity required : 1 |
|||||||||
|
36 |
00H00307332 - ADHESIF More informationQuantity required : 1 |
|||||||||
|
37 |
00H02200791 - SILENTBLOCPLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/9/img/63609.jpg)
38 |
00001213190 - DOUILLE DE BUTEE More informationQuantity required : 1 |
|||||||||
