Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

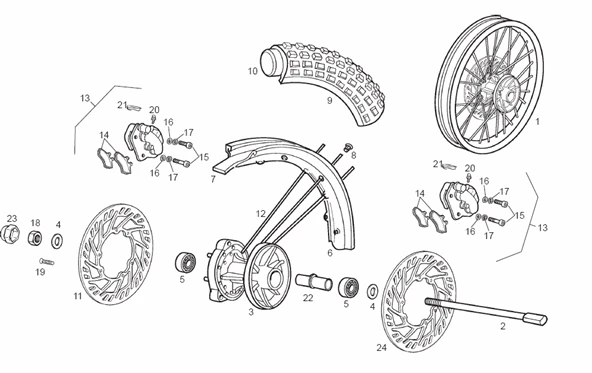

Tables : 8 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1080/Senda_R_50_Black_Devil_2_edicion_2003_EMEA_8.png)
1 |
00H04722081 - ROUE AV. COMPLETE More informationQuantity required : 1 |
||||||
|
1 |
00H04723081 - ROUE AV. COMPLETE More informationQuantity required : 1 |
||||||
|
1 |
00H04721081 - ROUE AV. COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/8/img/64428.jpg)
2 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50 APRILIA SX, RX 2006>2013 SPOKED WHEELS -00H01202271- More informationQuantity required : 1 |
||||||
|
2 |
00H01204271 - AXE DE ROUE AV. More informationQuantity required : 1 |
||||||
|
3 |
00H01206711 - MOYEU More informationQuantity required : 1 |
||||||
|
3 |
00H01204711 - MOYEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
4 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
5 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/4/9/img/64449.jpg)
6 |
FRONT RIM "PIAGGIO GENUINE PART" APRILIA SX 50 2009 -00H01211082 More informationQuantity required : 1 |
||||||
|
6 |
00H01209081 - JANTE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/7/img/63877.jpg)
7 |
00D01201091 - PROTECTEUR DE CHAMBRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/7/img/63627.jpg)
8 |
NUT - FOR SPOKE "PIAGGIO GENUINE PART" GILERA SMT, RCR/APRILIA 50 SX, RX -00002212070 More informationQuantity required : 1 |
||||||
|
9 |
00H01218111 - PNEU AV. 100/80X17 52S V294 VEE RUBBER More informationQuantity required : 1 |
||||||
|
9 |
00H01219111 - PNEU AV. 90/90X21" More informationQuantity required : 1 |
||||||
|
10 |
00H01207101 - CHAMBRE A AIR More informationQuantity required : 1 |
||||||
|
10 |
00H01206101 - CHAMBRE A AIR More informationQuantity required : 1 |
||||||
|
11 |
00H01200701 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/2/8/img/70128.jpg)
11 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 RCR 2011>/APRILIA 50 RX 2006> -865534 More informationQuantity required : 1 |
||||||
|
11 |
00H01217021 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/9/img/64439.jpg)
12 |
FRONT WHEEL SPOKE "PIAGGIO GENUINE PART" GILERA 50 RCR/APRILIA 50 RX -00H01206061 More informationQuantity required : 1 |
||||||
|
13 |
00H01204191 - ENS.ETRIER DE FREIN More informationQuantity required : 1 |
||||||
|
14 |
00H04702141 - KIT PLAQUETTES DE FREIN DT.GPR 50R More informationQuantity required : 1 |
||||||
|
15 |
00000004830 - BOULON TETE HEX.8M125X30 D933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
16 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
17 |
00034000802 - ZONDELLE EVENTAIL INT. D8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
18 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
19 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
20 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
21 |
BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/3/0/img/64430.jpg)
22 |
SPACER- FOR FRONT WHEEL (SPOKED WHEEL) "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2016 -00H01203031 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/5/img/64425.jpg)
23 |
FRONT WHEEL GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01201331 More informationQuantity required : 1 |
||||||
|
24 |
00H01212021 - DISQUE FREIN AVANT More informationQuantity required : 1 |
