Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

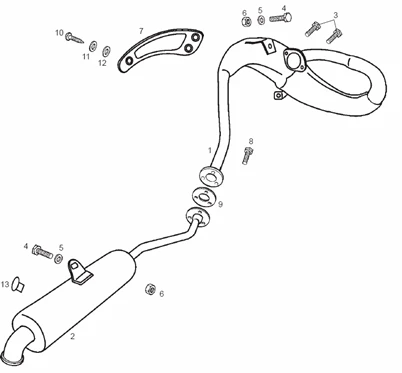

Tables : 21 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1080/Senda_R_50_Black_Devil_2_edicion_2003_EMEA_21.png)
1 |
00H03447081 - ENSEMBLE TUBE DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
00H03439083 - ENSEMBLE TUBE DIECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/5/img/69845.jpg)
2 |
86126R - SILENCIEUX DIECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
3 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044 More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
5 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
00H01810391 - PROTECT. SIL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
8 |
00D05910081 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/2/img/64792.jpg)
9 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/0/img/63580.jpg)
10 |
00000012415 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/2/img/63922.jpg)
11 |
00F04201361 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
12 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
|
13 |
00G01500951 - APPUI BEQUILLE LATERALE More informationQuantity required : 1 |
