Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

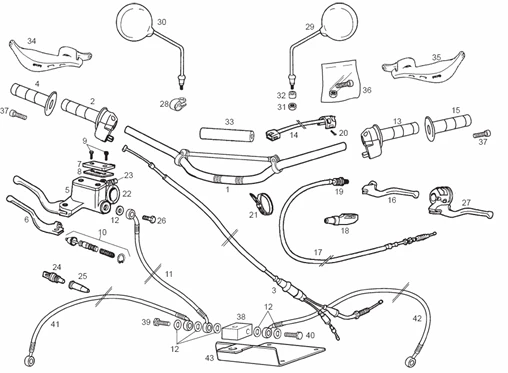

Tables : 6 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1080/Senda_R_50_Black_Devil_2_edicion_2003_EMEA_6.png)
1 |
00H00916011 - GUIDON More informationQuantity required : 1 |
||||||
|
1 |
00H00906013 - GUIDON More informationQuantity required : 1 |
||||||
|
2 |
00H02103621 - POIGNEE DE GAZ COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
00H00920171 - GAINE ET CABLE DE GAZ More informationQuantity required : 1 |
||||||
|
4 |
00H00902091 - CAOUT. DE PIGNEE GAZ More informationQuantity required : 1 |
||||||
|
5 |
00H02105081 - R-ENSEM. KIT REPAR. POMPE SE More informationQuantity required : 1 |
||||||
|
5 |
00H02105082 - R-ENSEM. KIT REPAR. POMPE SE More informationQuantity required : 1 |
||||||
|
6 |
00H00906202 - MANETE DU FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/4/1/img/64341.jpg)
6 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H00906203- More informationQuantity required : 1 |
||||||
|
7 |
00H02101191 - R-COUV. RESER. LIQ. FREIN AVAN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/1/img/64651.jpg)
8 |
FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
00D02120811 - R-ENSEM.KIT REPAR. POMPE SE More informationQuantity required : 1 |
||||||
|
11 |
00H00921751 - FLEXIBLE DE FREIN AVANT More informationQuantity required : 1 |
||||||
|
11 |
00H00916751 - FLEXIBLE DE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
12 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
|
13 |
00H01007141 - INVERSEUR AVEC CABLE More informationQuantity required : 1 |
||||||
|
14 |
00H02305171 - INVERSEUR AVEC CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/5/8/img/64358.jpg)
15 |
LEFT HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00930071 More informationQuantity required : 1 |
||||||
|
16 |
00H00903292 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
16 |
00H00903293 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
17 |
00H00908301 - GAINE ET CABLE DIEMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/3/img/64653.jpg)
18 |
CLUTCH LEVER GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02101011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/2/img/63902.jpg)
19 |
SCREW - FOR CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006-, APRILIA 50 RX,SX 2006-2013 (M6 L27MM) -00F00920551 More informationQuantity required : 1 |
||||||
|
20 |
00000012508 - VIS More informationQuantity required : 1 |
||||||
|
21 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/6/img/63886.jpg)
22 |
HALF CLAMP- FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 20006>2010 -00D02100901 More informationQuantity required : 1 |
||||||
|
23 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
24 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/4/img/63654.jpg)
25 |
00005010760 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
26 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
|
27 |
00H02106612 - ENS. PORTE-MANETTE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/5/img/64665.jpg)
28 |
00H02200681 - COLLIER More informationQuantity required : 1 |
||||||
|
29 |
00H04603921 - ENSEMBLE MIRROIR RETROVISEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/7/9/img/64679.jpg)
29 |
MIRROR- LEFT - ROUND SHAPED "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>2009 -00H02213671 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/2/6/img/64926.jpg)
30 |
MIRROR- RIGHT "ROUND SHAPED" "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>2009 -00H04608921 More informationQuantity required : 1 |
||||||
|
31 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
|
32 |
00G00800261 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
33 |
00H00901501 - PROTEGE GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/1/img/65921.jpg)
34 |
20H02102011 - PROTECTION DRT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/2/img/65922.jpg)
35 |
20H02102831 - PROTECTION GAU. More informationQuantity required : 1 |
||||||
|
36 |
00H00900511 - KIT VIS More informationQuantity required : 1 |
||||||
|
37 |
00002085531 - TORN.C/ALL.8M125X55 DIN912 12.9 DAC More informationQuantity required : 1 |
||||||
|
37 |
00H02100021 - VIS More informationQuantity required : 1 |
||||||
|
38 |
00H00900281 - DISTRIBUTEUR More informationQuantity required : 1 |
||||||
|
39 |
00H00900251 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/6/7/7/img/187677.jpg)
40 |
00H00901261 - VIS More informationQuantity required : 1 |
||||||
|
41 |
00H00900741 - FLEXIBLE DE FREIN AVANT DROITE More informationQuantity required : 1 |
||||||
|
42 |
00H00900771 - FLEXIBLE DE FREIN AVANT GAUCHE More informationQuantity required : 1 |
||||||
|
43 |
00H02100121 - PLAQUE SUP. DISTRIBUTEUR More informationQuantity required : 1 |
