Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

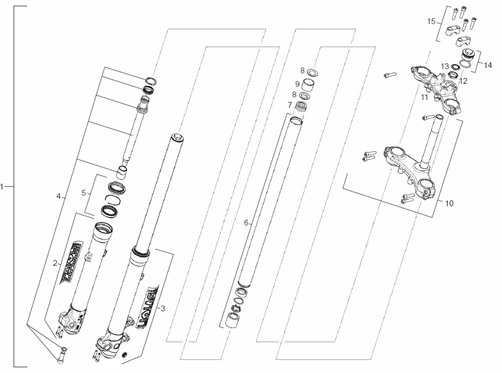

Tables : 2 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1080/Senda_R_50_Black_Devil_2_edicion_2003_EMEA_2.png)
1 |
00H00232001 - ENSEMBLE FOURCHE DIRITICE More informationQuantity required : 1 |
||||||
|
1 |
00H00232002 - ENSEMBLE FOURCHE DIRITICE More informationQuantity required : 1 |
||||||
|
1 |
00H00236001 - ENSEMBLE FOURCHE DIRITICE More informationQuantity required : 1 |
||||||
|
2 |
00H02020031 - BOUCHON DROITE More informationQuantity required : 1 |
||||||
|
2 |
00H02022031 - BOUCHON DROITE More informationQuantity required : 1 |
||||||
|
2 |
00H02021031 - BOUCHON DROITE More informationQuantity required : 1 |
||||||
|
3 |
00H02022041 - BOUCHON GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
00H02021041 - BOUCHON GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
00H02020041 - BOUCHON GAUCHE More informationQuantity required : 1 |
||||||
|
4 |
00H00206531 - TUBE HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
4 |
00H00207531 - GROUP FOURCHE BARRE More informationQuantity required : 1 |
||||||
|
5 |
00H00205231 - POUSSIERE More informationQuantity required : 1 |
||||||
|
6 |
00H02005871 - BRANCHE ENSEMBLE More informationQuantity required : 1 |
||||||
|
6 |
00H02006871 - BRANCHE ENSEMBLE More informationQuantity required : 1 |
||||||
|
7 |
00H00215171 - RESSORT DE FOURCHE More informationQuantity required : 1 |
||||||
|
8 |
00H00203691 - RONDELLE RESSORT DE FOURCHE More informationQuantity required : 1 |
||||||
|
9 |
00H00207151 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
9 |
00H00206151 - TUYAU RESSORT DE FOURCHE More informationQuantity required : 1 |
||||||
|
10 |
00H00216011 - PLATINE INF. AVEC PIVOT More informationQuantity required : 1 |
||||||
|
11 |
00H00216091 - PLATINE SUPERIEURE FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/9/0/img/64190.jpg)
12 |
NUT - FOR UPPER FORK PLATE FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00204601 More informationQuantity required : 1 |
||||||
|
13 |
00H00206111 - ECROU FIX PIVOT More informationQuantity required : 1 |
||||||
|
14 |
00H00207271 - BOUCHON More informationQuantity required : 1 |
||||||
|
15 |
00H00205741 - ETRIER FIX GUIDON More informationQuantity required : 1 |
