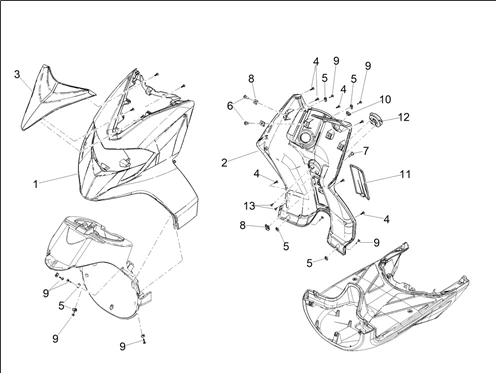

Cadre : 02.03 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.03.png)
1 |
|
||||||
|
1 |
SP1B008630NL - SR MY'21 FR SHIELD-MT BLACK SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630BR - SR MY'21 SHIELD- WHITE SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630DX - SR MY'21-SHIELD-GLOSSY BLUE SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630HL - SR MY'21-SHIELD-GLOSSY GREY SPD More informationQuantity required : 1 |
||||||
|
1 |
SP1B008630R7 - SR MY'21-SHIELD-GLOSSY RED SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/0/7/6/5/img/170765.jpg)
2 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1B007748- More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706BR - SR MY'21 STEERING COVER-WHITE SPD More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706R7 - SR MY'21-STEERING COVER-GLOSSY RED SPD More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706DX - SR MY'21-STEERING COVER-GLOSSY BLUE SP More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706HL - SR MY'21-STEERING COVER-GLOSSY GREY SP More informationQuantity required : 1 |
||||||
|
3 |
SP1B008706NL - SR MY'21 ST COVER MT BLACK SPD More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
6 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/7/7/img/152777.jpg)
10 |
1B005790 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/7/6/img/152776.jpg)
11 |
CHASSIS NUMBER INSPECTION COVER "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1B005199- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/2/img/67122.jpg)
12 |
HAND BAG HOOK "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS+ MAXISCOOTERS -575819- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
13 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 2 |
