Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

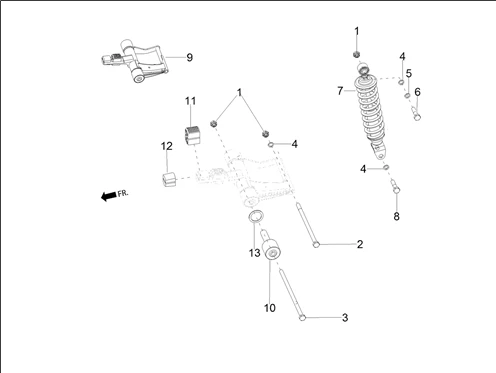

Cadre : 02.17 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.17.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
1 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/5/img/152875.jpg)
2 |
668302 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/4/img/152874.jpg)
3 |
1C002598 - VIS More informationQuantity required : 1 |
||||||
4 |
B015320 - RONDELLE More informationQuantity required : 4 |
||||||
|
5 |
B015321 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/0/img/114680.jpg)
6 |
B024614 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/2/img/178652.jpg)
7 |
1C005077 - REAR SHOCK ABSORBER ASSY More informationQuantity required : 1 |
||||||
|
7 |
1C005077 - REAR SHOCK ABSORBER ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
8 |
SCREW - FOR REAR SHOCK ABSORBER"PIAGGIO GENUINE PARTS" FOR ALL THE RANGE -268158- More informationQuantity required : 1 |
||||||
|
9 |
1C005019 - BRAS OSCILLANT COMPLET More informationQuantity required : 1 |
||||||
|
10 |
563076 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/0/img/66060.jpg)
11 |
SILENTBLOC FOR SWING ARM "PIAGGIO GENUINE PART" 50 NRG, TYPHOON, FLY, LIBERTY/GILERA 50 STALKER, RUNNER -267550- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/1/img/66061.jpg)
12 |
267589 - SILENBLOC More informationQuantity required : 1 |
||||||
|
13 |
562576 - RONDELLE More informationQuantity required : 2 |
