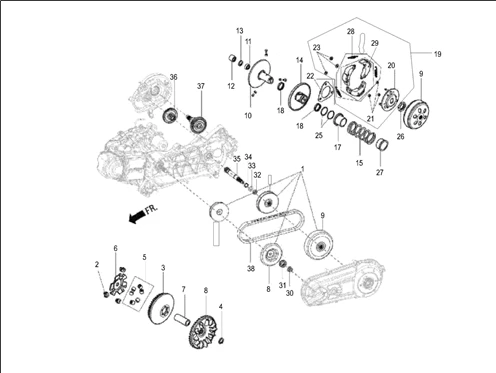

Moteur : 01.15 TRANSMISSION-EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_01.15.png)
1 |
1A005058R - TRANSMISSION COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
1A001746 - DOIGT More informationQuantity required : 1 |
||||||
|
3 |
1A001742 - DEMI POULIE More informationQuantity required : 1 |
||||||
|
4 |
1A002443 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
5 |
1A002444 - ROULEAU CPL. More informationQuantity required : 6 |
||||||
|
6 |
1A001745 - CONTRASTE ROULEAUX More informationQuantity required : 1 |
||||||
|
7 |
1A002446 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
8 |
1A005055 - DEMI POULIE More informationQuantity required : 1 |
||||||
|
9 |
1A005057 - TAMBOUR D'EMBR. More informationQuantity required : 1 |
||||||
|
10 |
1A002430 - DEMI-POULIE ENTRAINEE FIXE COMPLETE More informationQuantity required : 1 |
||||||
|
11 |
1A002431 - ROULEMENT RADIAL More informationQuantity required : 1 |
||||||
|
12 |
1A002432 - CAGE A ROULEAU More informationQuantity required : 1 |
||||||
|
13 |
1A002433 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
14 |
1A013713 - DEMI-POULIE COND. MOB. More informationQuantity required : 1 |
||||||
|
15 |
1A002439 - RESSORT VARIATEUR More informationQuantity required : 1 |
||||||
|
17 |
1A002440 - GODET COTE POULIE More informationQuantity required : 1 |
||||||
|
18 |
1A002441 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
19 |
1A002425 - GROUPE D'EMBRAYAGE CENTRIFUGE COMPLET More informationQuantity required : 1 |
||||||
|
20 |
1A002426 - SUPPORT MASSES EMBRAYAGE AVEC P.I. More informationQuantity required : 1 |
||||||
|
21 |
1A002427 - TAMPON More informationQuantity required : 3 |
||||||
|
22 |
1A002428 - DISQUE More informationQuantity required : 1 |
||||||
|
23 |
1A002429 - ANNEAU ELAST. ARBRES More informationQuantity required : 3 |
||||||
|
25 |
1A002442 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
26 |
1A001748 - BAGUE More informationQuantity required : 1 |
||||||
|
27 |
B016922 - DOUILLE More informationQuantity required : 1 |
||||||
|
28 |
1A001744 - MASSE EMBRAYAGE AVEC P.I. More informationQuantity required : 1 |
||||||
|
29 |
|
||||||
|
30 |
1A006988 - ECROU More informationQuantity required : 1 |
||||||
|
31 |
B017599 - MOYEU More informationQuantity required : 1 |
||||||
|
32 |
B018308 - ECROU More informationQuantity required : 1 |
||||||
|
33 |
1A006499 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
|
34 |
B018306 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
35 |
1A006503 - ARBRE DE POULIE More informationQuantity required : 1 |
||||||
|
36 |
1A000784 - ARBRE DE RENVOI More informationQuantity required : 1 |
||||||
|
37 |
1A000787 - AXE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/5/6/1/img/195561.jpg)
38 |
1A018497 - RAW EDGE COG VARIABLE SPEED BELT More informationQuantity required : 1 |
