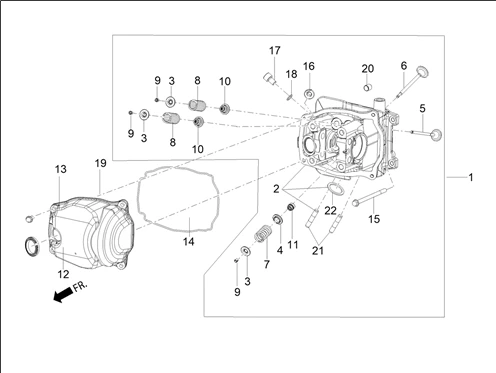

Moteur : 01.07 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_01.07.png)
1 |
SP1A016610 - CULASSE COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
SP1A016610 - CULASSE COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
B017456 - CUVETTE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
4 |
483711 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
|
5 |
B014684 - SOUPAPE ADMISSION ATD More informationQuantity required : 2 |
||||||
|
6 |
B017438 - SOUPAPE ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
7 |
B014705 - MOLLA VALVOLA SCARICO More informationQuantity required : 1 |
||||||
|
8 |
B014706 - MOLLA VALVOLA ASPIRAZI More informationQuantity required : 2 |
||||||
|
9 |
B015288 - SEMICONO More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/0/1/img/111201.jpg)
10 |
83054R - BAGUE ETANCHEITEE VM More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/6/img/69276.jpg)
11 |
VALVE GASKET RING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE + MAXISCOOTER 125 CC AIR COOLED -843307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/3/0/img/110430.jpg)
12 |
B014732 - JOINT BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
13 |
018639 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/4/img/110474.jpg)
14 |
B018533 - JOINT C/C More informationQuantity required : 4 |
||||||
|
15 |
B018854 - VIS More informationQuantity required : 2 |
||||||
|
16 |
844719 - ECROU More informationQuantity required : 4 |
||||||
|
17 |
811081025 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
18 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
|
19 |
1A006545 - COUVERCLE CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
20 |
435571 - PION DE CENTRAGE N°2 More informationQuantity required : 4 |
||||||
|
21 |
1A004153 - GOUJON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/8/img/66458.jpg)
22 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC REFROIDISSEMENT PAR AIR -434716 More informationQuantity required : 1 |
