Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

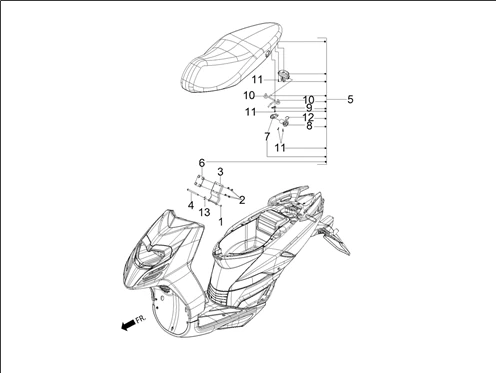

Cadre : 02.09 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.09.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
1 |
003056 - RONDELLE More informationQuantity required : 4 |
||||||
2 |
269136 - ECROU More informationQuantity required : 4 |
||||||
|
3 |
1B007746 - CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
4 |
1B004358 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
5 |
1B008632000C3 - COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
5 |
1B008632000C1 - COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
5 |
1B008632000C2 - COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
6 |
856467 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/4/img/152834.jpg)
7 |
1B003616 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/2/img/152832.jpg)
8 |
1B003642 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
9 |
296743 - PONTET More informationQuantity required : 1 |
||||||
|
10 |
623504 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/5/img/152835.jpg)
11 |
674163 - VIS More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/3/img/152833.jpg)
12 |
674312 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/7/img/63797.jpg)
13 |
005965 - ANNEAU S00596500 More informationQuantity required : 4 |
