Vehicle Exploded View - APRILIA SR 125 MOTARD RST 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

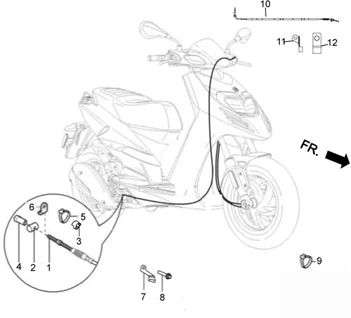

Cadre : 02.22 TRANSMISSIONS-FREIN AR.-COMPTEUR KILOM.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1157/SR_125_MOTARD_RST_2022_(EMEA)_02.22.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/9/img/152909.jpg)
1 |
REAR BRAKE CABLE KIT "PIAGGIO GENUINE PARTS" 50 TYPHOON 4T 2018>/APRILIA 50 SR MOTARD 4T 2018> -1C002153- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
2 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/1/4/img/152914.jpg)
3 |
1C001642 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
4 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
5 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
6 |
564645 - PLAQUETTE More informationQuantity required : 1 |
||||||
7 |
667842 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/3/img/164083.jpg)
8 |
1A003060 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/5/2/img/164252.jpg)
9 |
667841 - COLLIER More informationQuantity required : 1 |
||||||
|
10 |
1C004610 - TRANSM. COMMANDE GAZ More informationQuantity required : 1 |
||||||
|
11 |
1C004874 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
1C004912 - CLIP More informationQuantity required : 1 |
