Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

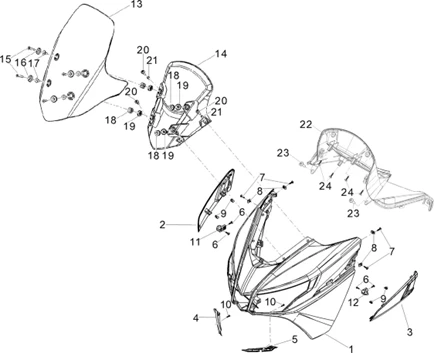

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.26.png)
1 |
|
||||||
|
1 |
642559 - BOUTON More informationQuantity required : 1 |
||||||
|
1 |
|
||||||
|
1 |
1B007694000HL - SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/2/2/8/8/img/182288.jpg)
2 |
CACHE LATERAL DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1B008607 More informationQuantity required : 1 |
||||||
|
2 |
CACHE LATERAL DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1B008607- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/2/2/8/5/img/182285.jpg)
3 |
CACHE LATERAL GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> More informationQuantity required : 1 |
||||||
|
3 |
CACHE LATERAL GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/1/7/img/178517.jpg)
4 |
1B008398 - RIGHT GRID More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/1/8/img/178518.jpg)
5 |
1B008397 - LEFT GRID More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
9 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
10 |
267115 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/0/img/178520.jpg)
11 |
1B008887 - RIGHT ADAPTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/1/img/178521.jpg)
12 |
1B008886 - LEFT ADAPTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/0/9/img/178509.jpg)
13 |
1B007724 - COUPOLE More informationQuantity required : 1 |
||||||
|
14 |
1B010558 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
15 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/4/img/91564.jpg)
16 |
WINDSHIEL STUD "PIAGGIO GENUINE PART" 125-300-400 MP3 -674070 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/3/img/91563.jpg)
17 |
SPACER- FOR WIND SHIELD "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -674068 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
18 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -576565 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/4/6/img/91646.jpg)
19 |
SPACER- FOR WIND SHIELD "PIAGGIO GENUINE PART" 125-300-400-500 MP3 -674352 More informationQuantity required : 4 |
||||||
|
20 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/4/3/img/8864_3.JPG)
21 |
655131 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
22 |
1B010557 - DASHBOARD More informationQuantity required : 1 |
||||||
|
23 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
||||||
|
24 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 4 |
