Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

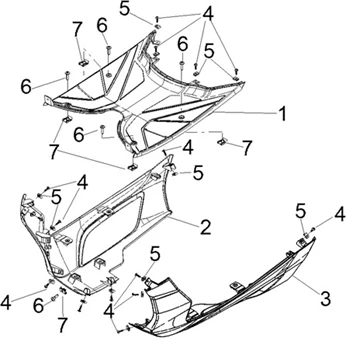

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/3/img/178523.jpg)
1 |
1B007704 - FOOTBOARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/8/img/178528.jpg)
2 |
SP1B007706BR - RIGHT SPOILER SXR WHITE SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/7/img/181957.jpg)
2 |
SP1B007706HL - SPOILER DROITE, GRISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/9/img/178529.jpg)
2 |
SP1B007706NL - RIGHT SPOILER SXR MAT BLACK SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/7/img/178527.jpg)
2 |
SP1B007706R7 - RIGHT SPOILER SXR RED SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/6/img/178526.jpg)
3 |
SP1B007705BR - LEFT SPOILER SXR WHITE SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/6/img/181956.jpg)
3 |
SP1B007705HL - SPOILER GAUCHE, GRISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/5/img/178525.jpg)
3 |
SP1B007705NL - LEFT SPOILER SXR MAT BLACK SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/2/4/img/178524.jpg)
3 |
SP1B007705R7 - LEFT SPOILER SXR RED SPD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 14 |
||||||
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
