Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

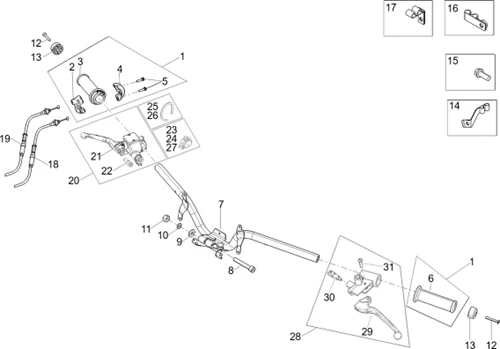

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_03.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/4/6/img/195646.jpg)
1 |
1C006375 - SLEEVE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/6/1/img/109261.jpg)
2 |
598369 - LOWER HALF CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
3 |
RIGHT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271453- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/1/4/img/109314.jpg)
4 |
666758 - LOWER HALF CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
5 |
1C004839 - SOCKET HEAD SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
6 |
LEFT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271452- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/5/0/7/img/204507.jpg)
7 |
1B009560 - GUIDON AVEC PIèCES INTERNES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
8 |
655554 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
9 |
267917 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
10 |
012543 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
11 |
015330 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
12 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/1/4/img/139914.jpg)
13 |
BAR ENDS - "PIAGGIO GENUINE PART" PIAGGIO 125 MEDLEY -1B002616 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/8/0/img/178680.jpg)
14 |
1C005784 - CLIP More informationQuantity required : 1 |
|||||||||
15 |
434541 - VIS More informationQuantity required : 1 |
|||||||||
|
16 |
1C006180 - CLAMP WITH IP More informationQuantity required : 1 |
|||||||||
|
17 |
1C006170 - CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/7/7/img/178677.jpg)
18 |
1C005762 - CLOSE THROTTLE CONTROL TRANSMISSION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/7/6/img/178676.jpg)
19 |
1C005761 - OPEN THROTTLE CONTROL TRANSMISSION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/1/4/3/img/155143.jpg)
20 |
FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -CM292601 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/6/8/img/152868.jpg)
21 |
FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" 50 TYPHOON 2018/APRILIA 50 SR MOTARD 2018> -1C003176 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
22 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/1/img/72911.jpg)
23 |
CM006912 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
24 |
CM013202 - RESSORT More informationQuantity required : 1 |
|||||||||
|
25 |
|
|||||||||
|
26 |
CM0074C3 - GAINE More informationQuantity required : 1 |
|||||||||
|
27 |
CM006904 - OLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/0/img/152870.jpg)
28 |
CM293402 - MANCHON LEVIER DU FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/1/img/152871.jpg)
29 |
REAR BRAKE LEVER- "PIAGGIO GENUINE PART" 50 TYPHOON 2018/APRILIA 50 SR MOTARD 2018> -667387 More informationQuantity required : 1 |
|||||||||
|
30 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
|||||||||
|
31 |
|
|||||||||
