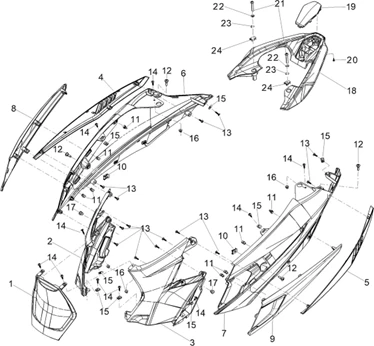

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.32.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/2/img/178552.jpg)
1 |
1B007717 - CENTRAL COVER More informationQuantity required : 1 |
||||||
2 |
CACHE LATERAL DROIT ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -1B007715 More informationQuantity required : 1 |
||||||
|
3 |
CACHE LATERAL GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> NOIR -1B007711 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/5/img/178555.jpg)
4 |
1B007716 - RIGHT LOWER SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/5/6/img/178556.jpg)
5 |
1B007712 - LEFT LOWER SIDE More informationQuantity required : 1 |
||||||
|
6 |
1B010795 - FLANC DROIT More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
6 |
|
||||||
|
7 |
1B010794 - AILE G More informationQuantity required : 1 |
||||||
|
7 |
1B010794 - AILE G More informationQuantity required : 1 |
||||||
|
7 |
SP1B010794BR - LEFT BODY SIDE SXR GL. WHITE - SPD More informationQuantity required : 1 |
||||||
|
7 |
SP1B010794HL - LEFT BODY SIDE More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/6/7/6/0/img/186760.jpg)
8 |
RIGHT REAR TRIM ASSEMBLY SXR SPD -SP1B008605 More informationQuantity required : 1 |
||||||
|
8 |
RIGHT REAR TRIM ASSEMBLY SXR SPD -SP1B008605- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/0/6/7/img/187067.jpg)
9 |
CACHE FLANC GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1B008604- More informationQuantity required : 1 |
||||||
|
9 |
CACHE FLANC GAUCHE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1B008604- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
11 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
13 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
15 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
16 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 4 |
||||||
|
17 |
623504 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/4/0/4/img/204404.jpg)
18 |
POIGNEE PASSAGER ORIGINE APRILIA 50 SXR 2021> BLANC -SP1B009210BR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/4/0/1/img/204401.jpg)
18 |
POIGNEE PASSAGER ORIGINE APRILIA 50 SXR 2021> GRIS -SP1B009210HL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/4/0/3/img/20440_3.jpg)
18 |
POIGNEE PASSAGER ORIGINE APRILIA 50 SXR 2021> NOIR -SP1B009210NL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/4/0/2/img/20440_2.jpg)
18 |
POIGNEE PASSAGER ORIGINE APRILIA 50 SXR 2021> ROUGE -SP1B009210R7- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/7/4/img/178574.jpg)
19 |
1B009267 - REAR HANDLE COVER More informationQuantity required : 1 |
||||||
|
20 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 1 |
||||||
|
21 |
959582 - SOCKED HEAD SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
22 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
23 |
003058 - RONDELLE S00305800 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
24 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268- More informationQuantity required : 2 |
