Vehicle Exploded View - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

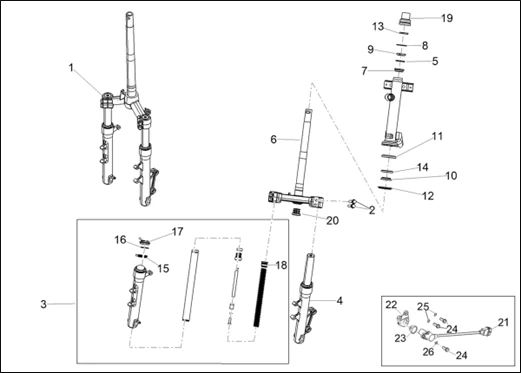

Suspensions - roues : 04.02 FOURCHE/TUBE DIRECTION - ENSEMBLE BUTÉE DIR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_04.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/4/img/178654.jpg)
1 |
SP1C005185 - FRONT FORK SXR SPD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/5/img/178655.jpg)
2 |
1C005233 - HEXAG HEAD SCREW More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/7/img/178657.jpg)
3 |
1C005189 - RIGHT LEG ASSEMBLY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/6/img/178656.jpg)
4 |
1C005190 - LEFT LEG ASSEMBLY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/9/img/152889.jpg)
5 |
HEADSET LOWER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564260- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/8/img/178658.jpg)
6 |
1C005184 - FORK SUPPORT WITH IP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/7/img/152887.jpg)
7 |
UPPER STEERING CUP "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564256 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
8 |
STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/5/img/152885.jpg)
9 |
LOWER STEERING CONE "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564258 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/8/img/152888.jpg)
10 |
LOWER STEERING CUP "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564259 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/0/img/152890.jpg)
11 |
UPPER STEERING CONE "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -665602 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/2/9/img/127529.jpg)
12 |
STEERING LOWER PROTECTION RING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1C001628 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
13 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/6/img/152886.jpg)
14 |
HEADSET UPPER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564257 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/1/img/152881.jpg)
15 |
1C002469 - PARE-HUILE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/2/img/152882.jpg)
16 |
1C002470 - CIRCLIPS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/0/img/152880.jpg)
17 |
1C002471 - PARE-POUSSIERE More informationQuantity required : 2 |
|||||||||
18 |
1C002472 - BOUCHON More informationQuantity required : 1 |
|||||||||
|
19 |
1B003841 - CACHE More informationQuantity required : 1 |
|||||||||
|
20 |
601026 - BOUCHON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/2/img/152892.jpg)
21 |
PHONIC WHEEL / SPEEDOMETER SENSOR "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1D000074 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/7/0/8/img/178708.jpg)
22 |
1C005268 - VELOCITY SENSOR SUPPORT PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/2/img/90442.jpg)
23 |
668780 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
24 |
709099 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
25 |
006966 - RONDELLE S00696600 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
26 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
|||||||||
