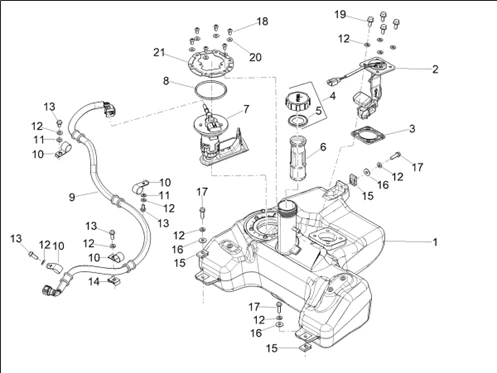

Châssis - parties plastiques - carrosseries : 02.47 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.47.png)
1 |
RESERVOIR CARBURANT ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B009763R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/8/7/img/178687.jpg)
2 |
1D003352 - FUEL LEVEL GAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/6/4/img/109364.jpg)
3 |
676200 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/5/2/img/152852.jpg)
4 |
FUEL CAP "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 4 STROKE 2018>/APRILIA 50 SR MOTARD 4 STROKE 2018> -1B004165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
5 |
656021 - JOINT More informationQuantity required : 1 |
||||||
|
6 |
675424 - INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/3/8/img/166538.jpg)
7 |
1D002701 - POMPE A CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/2/6/img/151626.jpg)
8 |
1B002953 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/8/8/img/178688.jpg)
9 |
1B008924 - COMPLETE FUEL PIPE FLEXIBALE More informationQuantity required : 1 |
||||||
|
10 |
1B001321 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
12 |
016406 - RONDELLE S01640600 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
13 |
969296 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
15 |
CM259204 - PLAQUETTE ELASTIQUE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
16 |
013880 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
17 |
018639 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
19 |
B016426 - VIS TEF M6X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
20 |
006078 - RONDELLE S00607800 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/2/1/img/151621.jpg)
21 |
1B005066 - BRIDE More informationQuantity required : 1 |
