Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

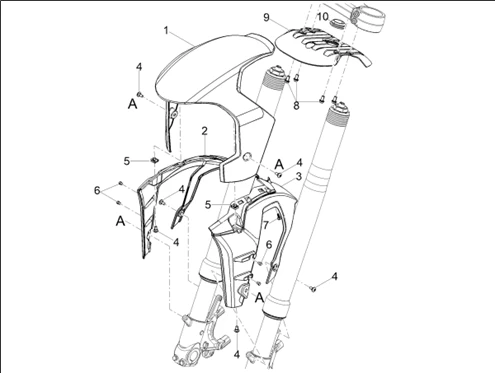

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_02.03.png)
1 |
2B009740000XN6 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
2B009740 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
2 |
2B009883 - RH INTERNAL FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
3 |
2B009884 - LH INTERNAL FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
4 |
2B003422 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
5 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
6 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
AP8152277 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
9 |
2B010511 - FRONT FORK LOWER PROTECTION More informationQuantity required : 1 |
||||||
|
10 |
190567 - TAMPON More informationQuantity required : 1 |
