Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

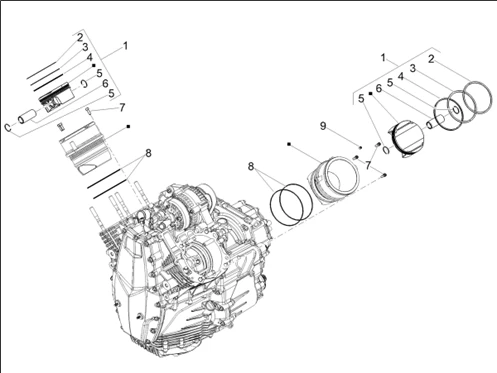

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_03.15.png)
1 |
1A0246020C - PISTON COMPL.CAT.C More informationQuantity required : 1 |
||||||
|
1 |
1A0246020D - PISTON COMPL.CAT.D More informationQuantity required : 1 |
||||||
|
1 |
1A0246020E - COMPLETE PISTON More informationQuantity required : 1 |
||||||
|
2 |
1A023586 - COMPRESSION RING More informationQuantity required : 2 |
||||||
|
3 |
1A023587 - SCRAPER RING More informationQuantity required : 2 |
||||||
|
4 |
1A023588 - SCRAPER RING More informationQuantity required : 2 |
||||||
|
5 |
1A020986 - PIN STOP RING More informationQuantity required : 4 |
||||||
|
6 |
1A021470 - PIN More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
7 |
292889 - VIS More informationQuantity required : 6 |
||||||
|
8 |
1A024874 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
9 |
1A022588 - CALIBRATED DOWEL More informationQuantity required : 1 |
