Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

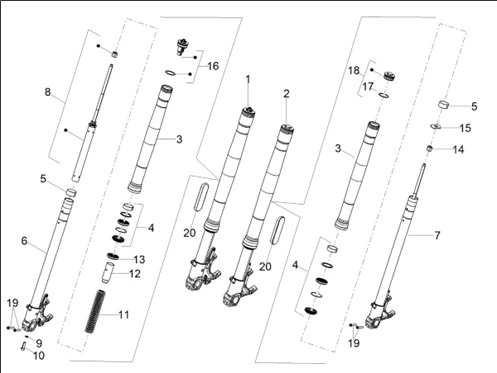

Suspensions : 04.04 FOURCHE AV. KAYABA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_04.04.png)
1 |
2B008609 - LEFT FORK LEG More informationQuantity required : 1 |
||||||
|
2 |
2B008452 - LEFT FORK LEG More informationQuantity required : 1 |
||||||
|
3 |
2B011400 - FOURREAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/9/9/img/145799.jpg)
4 |
2B004402 - JEU DE JOINTS More informationQuantity required : 2 |
||||||
|
5 |
2B004403 - DOUILLE DE COULISSEMENT More informationQuantity required : 1 |
||||||
|
6 |
2B004898 - COMPLETE INNER TUBE RH More informationQuantity required : 1 |
||||||
|
7 |
2B004897 - COMPLETE INNER TUBE LH More informationQuantity required : 1 |
||||||
|
8 |
2B011406 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/0/2/img/145802.jpg)
9 |
2B004406 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
2B004407 - VIS FIX. More informationQuantity required : 1 |
||||||
|
11 |
2B011403 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
2B004409 - TUYAU PRECHARGE More informationQuantity required : 1 |
||||||
|
13 |
2B004422 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
2B004410 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
15 |
2B004411 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
2B004412 - BOUCHON D. More informationQuantity required : 1 |
||||||
|
17 |
2B009631 - O-RING More informationQuantity required : 1 |
||||||
|
18 |
2B004413 - BOUCHON G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
19 |
AP8152283 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
20 |
GU05781630 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
