Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

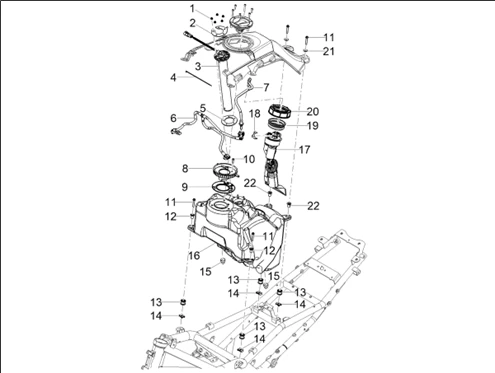

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_09.01.png)
1 |
2B008790 - SELF LOCK. FLANGE NUT M4 A2-70 DIN 6926 More informationQuantity required : 5 |
||||||
|
2 |
2B010548 - FUEL GAUGE LEVEL FIXED FLANGE More informationQuantity required : 1 |
||||||
|
3 |
2B010057 - FUEL LEVEL GAUGE More informationQuantity required : 1 |
||||||
|
4 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
5 |
2B010435 - GASKET More informationQuantity required : 1 |
||||||
|
6 |
2B010671 - INJECTOR SIDE FUEL PIPE More informationQuantity required : 1 |
||||||
|
7 |
2B010658 - TANK SIDE FUEL PIPE More informationQuantity required : 1 |
||||||
|
8 |
899107 - BAC ESSENCE More informationQuantity required : 1 |
||||||
|
9 |
899106 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
AP8150454 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
11 |
AP8152136 - VIS More informationQuantity required : 4 |
||||||
|
12 |
AP8121421 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
13 |
AP8144328 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
15 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158 More informationQuantity required : 2 |
||||||
|
16 |
2B009556 - ASSY FUEL TANK (EMEA VERSION) More informationQuantity required : 1 |
||||||
|
17 |
2B009489 - FUEL PUMP More informationQuantity required : 1 |
||||||
|
18 |
1B004354 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
19 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
20 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
21 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
|
22 |
2B009638 - BUSH More informationQuantity required : 2 |
