Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

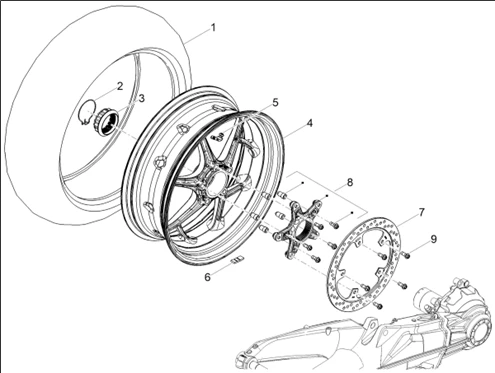

Roues : 05.02 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_05.02.png)
1 |
2B012820 - PNEU ARRIERE (MICHELIN) More informationQuantity required : 1 |
||||||
|
1 |
2B011148 - 190/55-17" REAR TYRE More informationQuantity required : 1 |
||||||
|
2 |
2B009728 - SPRING NUT More informationQuantity required : 1 |
||||||
|
3 |
2B009296 - REAR WHEEL NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/5/2/img/203852.jpg)
4 |
2B009278 - MACHINED WHEEL RIM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
5 |
AP8104728 - VALVOLA TUBELESS More informationQuantity required : 1 |
||||||
|
6 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
7 |
2B008330 - BRAKE DISK D280MM TH5 More informationQuantity required : 1 |
||||||
|
8 |
2B0116106 - SPARE PARTS REAR FLANGE CPL More informationQuantity required : 1 |
||||||
|
9 |
2B009221 - HEX HEAD FLANGED M8X1 L=20 PRE-IMPR. More informationQuantity required : 10 |
