Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

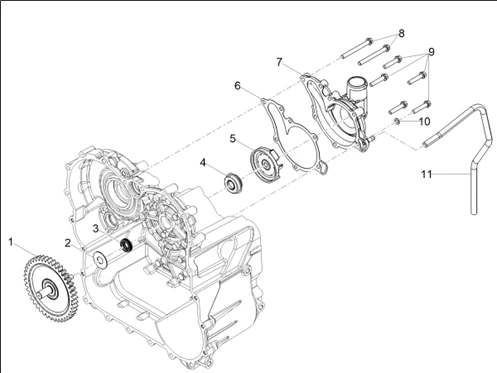

Moteur : 03.21 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_03.21.png)
1 |
1A022592 - WATER PUMP GEAR More informationQuantity required : 1 |
||||||
|
2 |
B018753 - WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/3/7/img/174937.jpg)
3 |
1A019621 - SEAL RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
4 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R More informationQuantity required : 1 |
||||||
|
5 |
1A021910 - WATER PUMP ROTOR More informationQuantity required : 1 |
||||||
|
6 |
1A021053 - JOINT DE CARTER DE POMPE A EAU More informationQuantity required : 1 |
||||||
|
7 |
1A023934 - PUMP COVER WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
8 |
B016425 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
9 |
874551 - VIS BRIDE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
10 |
847239 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
AP8220402 - TUYAU More informationQuantity required : 1 |
