Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

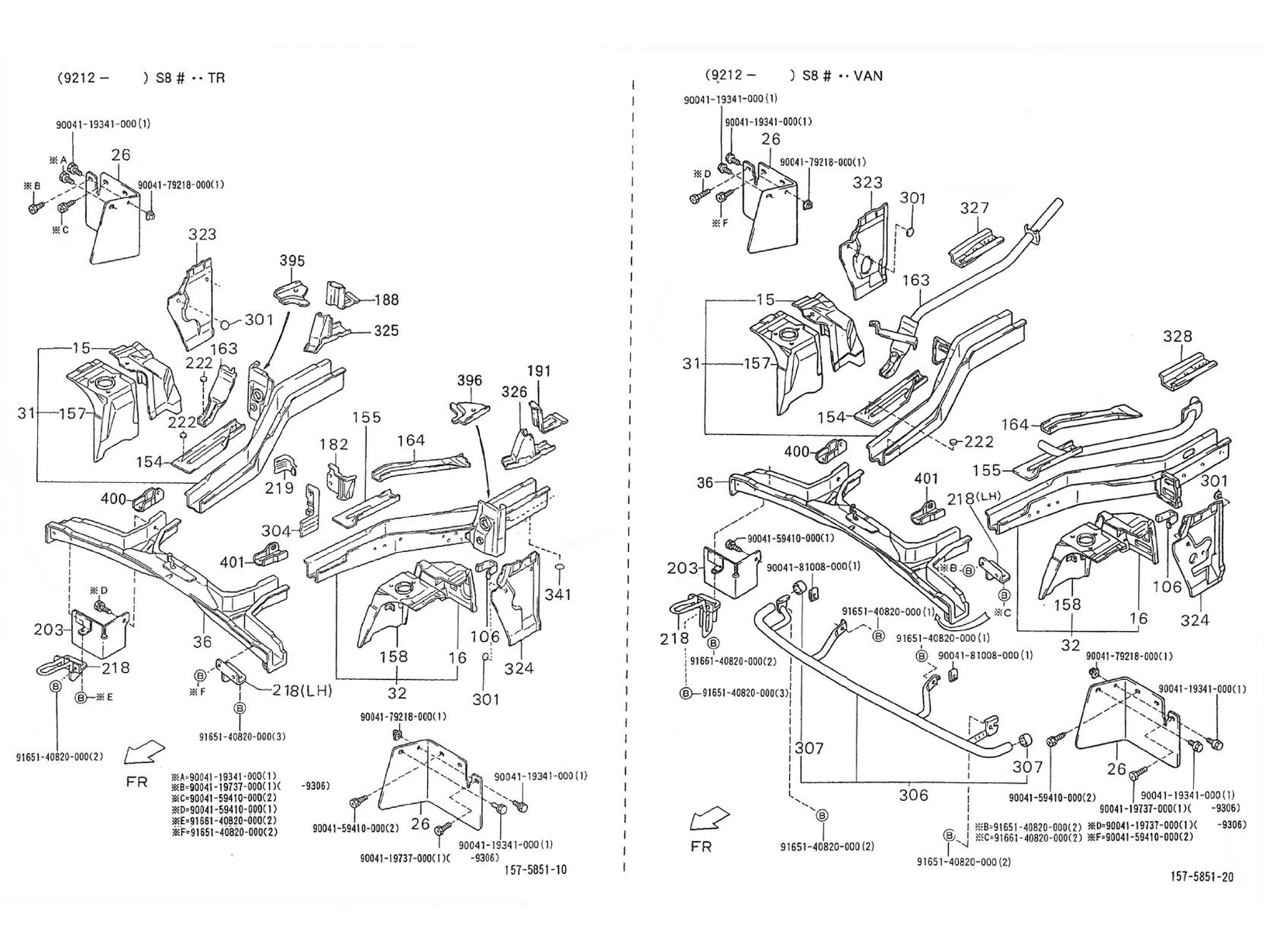

Chassis : 04.100 PANNEAU DE PLANCHER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.100.PNG)
15 |
PROTECTION |
||||||
|
15 |
5371187Z02000 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
5370287Z02000 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
7662187Z010006 GARDE-BOUE Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
7662187Z020006 GARDE-BOUE Plus d'informationsQuantité requise : 2 |
||||||
|
31 |
LOGEM.ROUE |
||||||
|
31 |
LOGEM. ROUE |
||||||
|
31 |
LOGEM ROUE |
||||||
|
31 |
5710187Z12000 VANO RUOTA SX Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
LOGEM. ROUE |
||||||
|
32 |
LOGEM ROUE |
||||||
|
32 |
LOGEM.ROUE |
||||||
|
32 |
LOGEM.ROUE |
||||||
|
32 |
5710287Z14000 VANO RUOTA DX Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
5710287Z15000 CACHE ROUE GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/9/7/6/img/123976.jpg)
36 |
TRAVERSE DE CHASSIS AVANT ORIGINE PIAGGIO PORTER 2020< -1E0000185 Plus d'informationsQuantité requise : 1 |
||||||
|
36 |
TRAVERSE |
||||||
|
106 |
5811787Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
154 |
PLAQUE |
||||||
|
154 |
PLAQUE |
||||||
|
154 |
5711387Z02000 PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
154 |
PLAQUE |
||||||
|
155 |
B0233195 PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
157 |
PROTECTION |
||||||
|
158 |
PROTECTION |
||||||
|
163 |
|
||||||
|
163 |
B0053575 PLAQUETTE CHASSIS Plus d'informationsQuantité requise : 1 |
||||||
|
163 |
PLAQUE |
||||||
|
163 |
PLAQUE |
||||||
|
164 |
D5711687Z03 PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
164 |
PLAQUE |
||||||
|
164 |
PLAQUE |
||||||
|
164 |
5711687Z07000 PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
182 |
SERRURE |
||||||
|
188 |
PLAQUE |
||||||
|
191 |
PLAQUE |
||||||
|
203 |
GARDE-BOUE |
||||||
|
203 |
7661987Z02000 GARDE-BOUE Plus d'informationsQuantité requise : 1 |
||||||
|
218 |
|
||||||
|
218 |
CROCHET |
||||||
|
218 |
5109487Z02000 CROCHET Plus d'informationsQuantité requise : 1 |
||||||
|
219 |
SUPPORT |
||||||
|
222 |
9004874013000 BOUCHON Plus d'informationsQuantité requise : 12 |
||||||
|
301 |
9004874013000 BOUCHON Plus d'informationsQuantité requise : 4 |
||||||
|
304 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/1/6/img/120816.jpg)
306 |
BARRE PROTECTRICE DE RADIATEUR ORIGINE PIAGGIO PORTER 1998<2020 -5290787Z03000 Plus d'informationsQuantité requise : 1 |
||||||
|
306 |
PROTECTION |
||||||
|
307 |
COUVERCLE |
||||||
|
323 |
|
||||||
|
323 |
5820387Z04000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
323 |
5820387Z02000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
323 |
B0070125 MONTANT DRT. Plus d'informationsQuantité requise : 1 |
||||||
|
324 |
5820487Z01000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
324 |
MONTANT |
||||||
|
324 |
5820487Z03000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
324 |
5820487Z04000 MONTANT Plus d'informationsQuantité requise : 1 |
||||||
|
325 |
SUPPORT |
||||||
|
325 |
5170387Z02000 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
326 |
5170487Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
327 |
5131587Z01000 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
328 |
PROTECTION |
||||||
|
328 |
5131687Z02000 RINFORZO Plus d'informationsQuantité requise : 1 |
||||||
|
341 |
BOUCHON |
||||||
|
395 |
D5822387Z025 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
396 |
D5822487Z02 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
400 |
5713387Z01000 PROTECTION Plus d'informationsQuantité requise : 1 |
||||||
|
401 |
PROTECTION |
||||||
|
406 |
BOULON |
||||||
|
407 |
D9004179081 ECROU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.jpg)
408 |
VIS TH (6X15) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM288112 Plus d'informationsQuantité requise : 1 |
||||||
|
409 |
VIS TH (6X15) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM288112 Plus d'informationsQuantité requise : 1 |
||||||
|
410 |
VIS |
||||||
|
411 |
BOULON |
||||||
|
412 |
BOULON |
||||||
|
413 |
VIS TH (6X15) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM288112 Plus d'informationsQuantité requise : 1 |
||||||
|
414 |
VIS |
||||||
|
415 |
VIS TH (6X15) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM288112 Plus d'informationsQuantité requise : 1 |
||||||
|
416 |
VIS |
||||||
|
417 |
ECROU |
||||||
|
418 |
BOULON |
||||||
|
419 |
ECROU |
