Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

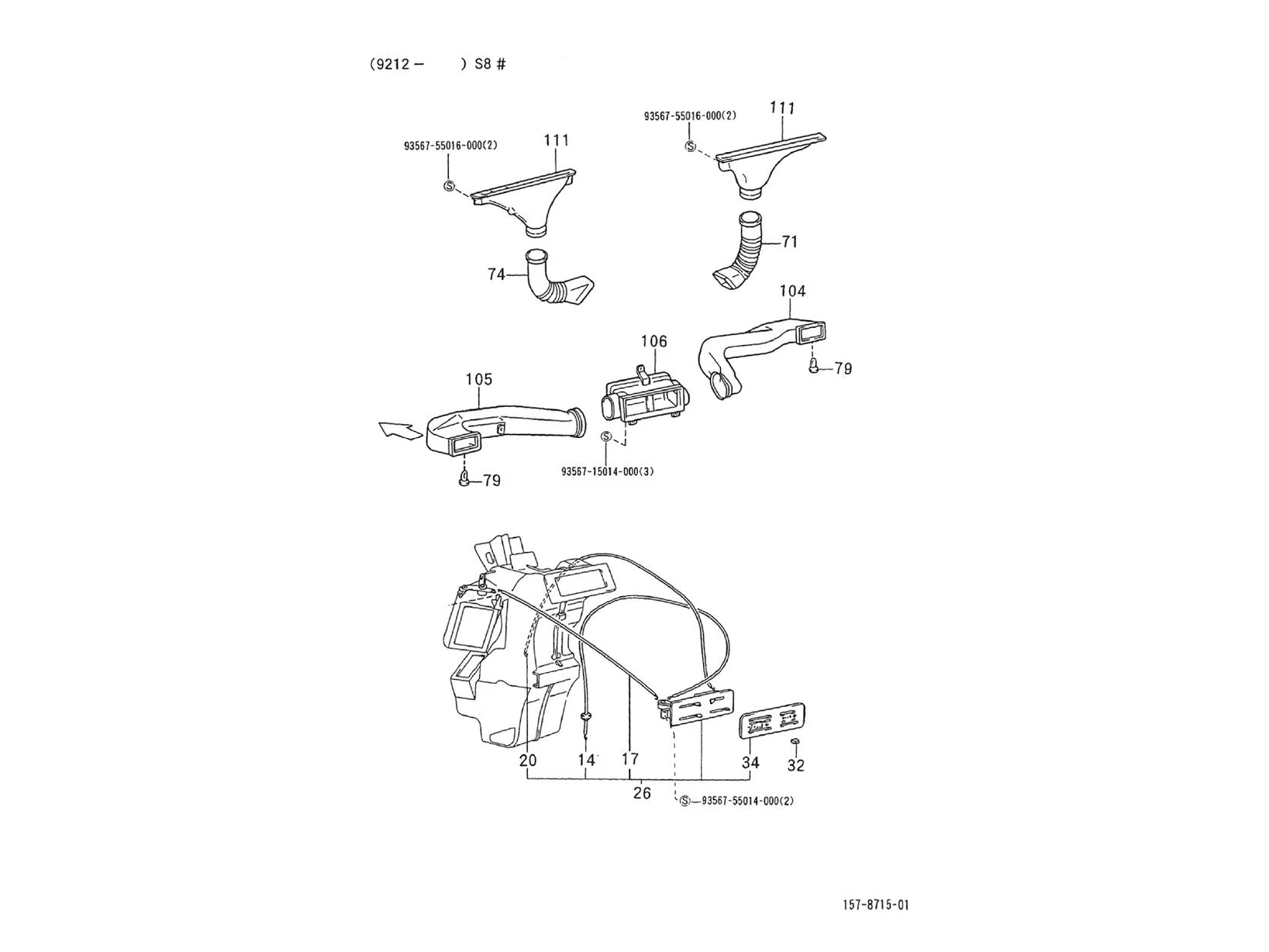

Circuit electrique : 05.220 COMMANDE CHAUFFAGE - CONDUITE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.220.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/7/1/img/118771.jpg)
14 |
CABLE/COMMANDE/TRANSMISSION DE CHAUFFAGE ORIGINE PIAGGIO PORTER TYPE VAN 1992>1995 -5590787507000 Plus d'informationsQuantité requise : 1 |
||||||
14 |
CABLE COMM. |
||||||
|
14 |
CABLE |
||||||
|
17 |
5590887508000 CABLE COMM. Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
CABLE CDS ENTREE AIR |
||||||
|
20 |
CABLE COMM. |
||||||
|
20 |
CABLE CDS VENTILATEU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/2/1/img/120921.jpg)
26 |
COMMANDE DE CHAUFFAGE ORIGINE PIAGGIO PORTER DIESEL 1998>2005 -5591087Z04000 Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GR COMMANDE CHAUFF |
||||||
|
26 |
|
||||||
|
26 |
|
||||||
|
32 |
BOUTON COMMANDE CHAUFFAGE ORIGINE PIAGGIO PORTER 1992>2009 -5592587Z01000- Plus d'informationsQuantité requise : 4 |
||||||
|
34 |
|
||||||
|
34 |
5551987513000 PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
PLAQUE |
||||||
|
34 |
PLAQUE |
||||||
|
71 |
TUBE |
||||||
|
71 |
TUBE |
||||||
|
74 |
TUBE |
||||||
|
74 |
8723287Z02000 TUBE Plus d'informationsQuantité requise : 1 |
||||||
|
79 |
9004468083000 - Plus d'informationsQuantité requise : 2 |
||||||
|
104 |
5584387502000 TUBE HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
105 |
5584487502000 TUBE UILE Plus d'informationsQuantité requise : 1 |
||||||
|
106 |
5508687507000 CANALISATION Plus d'informationsQuantité requise : 1 |
||||||
|
106 |
5508687Z01000 CANALISATION Plus d'informationsQuantité requise : 1 |
||||||
|
111 |
5509187503000 DIFFUSEUR AIR Plus d'informationsQuantité requise : 1 |
||||||
|
111 |
5509187Z02000 DIFFUSEUR AIR Plus d'informationsQuantité requise : 1 |
||||||
|
111 |
5509287503000 DIFFUSEUR AIR Plus d'informationsQuantité requise : 1 |
||||||
|
111 |
5509287Z02000 DIFFUSEUR AIR Plus d'informationsQuantité requise : 1 |
||||||
|
112 |
9356755016000 VIS Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
113 |
VIS TORX DE TABLEAU DE BORD ORIGINE PIAGGIO PORTER 2020< -B004853 Plus d'informationsQuantité requise : 5 |
