Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

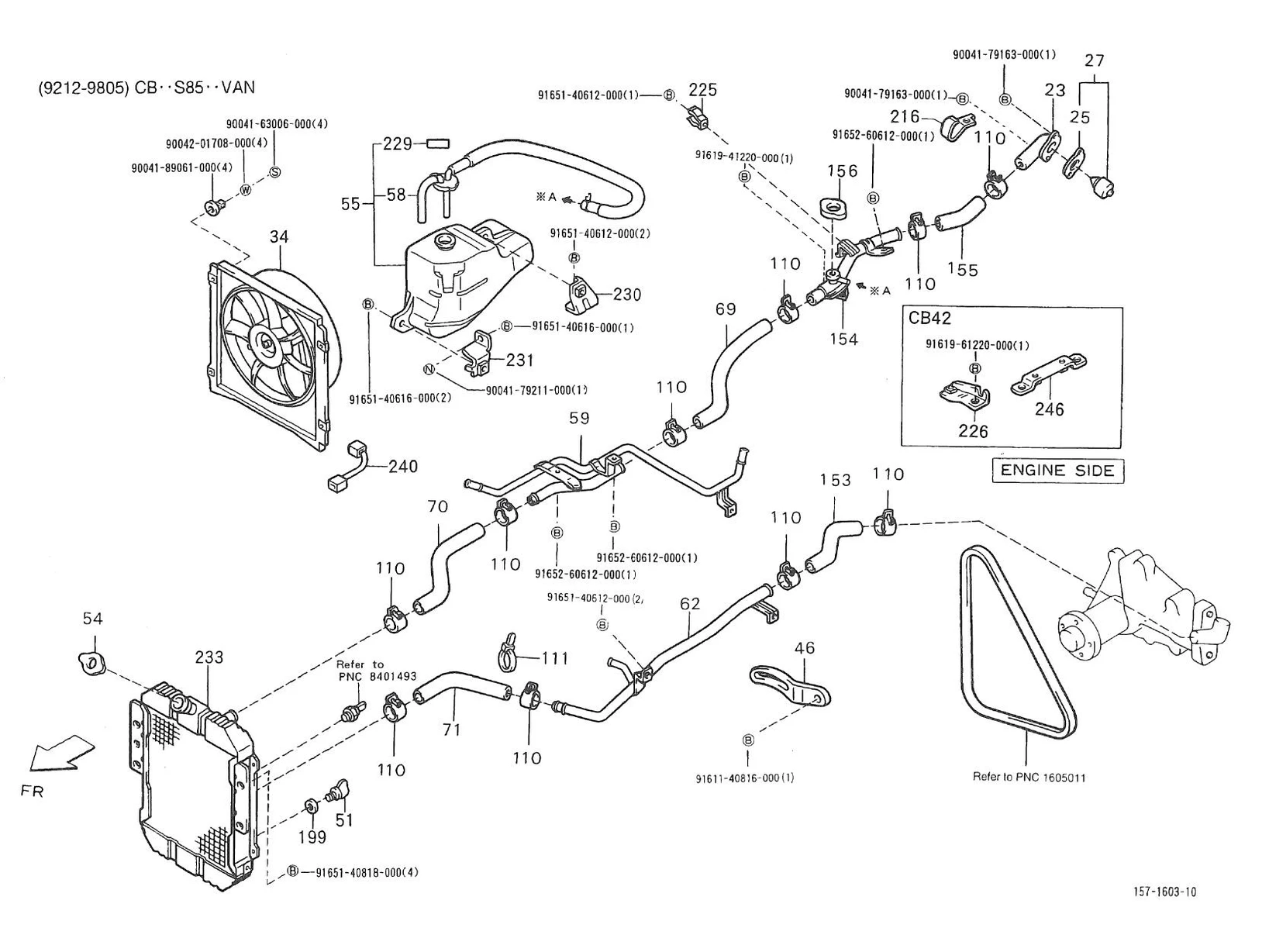

Moteur : 01.170 RADIATORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.170.PNG)
23 |
1633187710000 RACCORD Plus d'informationsQuantité requise : 1 |
|||||||||
|
23 |
1633187719000 RACCORD Plus d'informationsQuantité requise : 1 |
|||||||||
|
25 |
1634187709000 JOINT Plus d'informationsQuantité requise : 1 |
|||||||||
|
27 |
1634187795000 THERMOSTAT * Plus d'informationsQuantité requise : 1 |
|||||||||
|
34 |
1667087Z07000 VENTILATEUR RADIATEU Plus d'informationsQuantité requise : 1 |
|||||||||
|
46 |
BARRE REGLAGE |
|||||||||
|
46 |
BARRE REGLAGE |
|||||||||
|
51 |
BOUCHON |
|||||||||
|
54 |
1640187Z05000 BOUCHON Plus d'informationsQuantité requise : 1 |
|||||||||
|
54 |
|
|||||||||
|
55 |
RESERVOIR/VASE EXPANSION ORIGINE PIAGGIO PORTER 20/05/2011< -1650087Z07000 Plus d'informationsQuantité requise : 1 |
|||||||||
|
58 |
1650387Z05000 BOUCHON Plus d'informationsQuantité requise : 1 |
|||||||||
|
59 |
RACCORD |
|||||||||
|
59 |
RACCORD |
|||||||||
|
62 |
RACCORD |
|||||||||
|
62 |
RACCORD |
|||||||||
|
69 |
DURITE |
|||||||||
|
70 |
DURITE |
|||||||||
|
70 |
DURITE RADIATEUR |
|||||||||
|
71 |
DURITE RADIATEUR |
|||||||||
|
71 |
DURITE RADIATEUR |
|||||||||
|
110 |
COLLIER |
|||||||||
|
111 |
9004464484000 COLLIER Plus d'informationsQuantité requise : 1 |
|||||||||
|
153 |
DURITE |
|||||||||
|
154 |
DURITE |
|||||||||
|
154 |
1633287Z06000 DURITE Plus d'informationsQuantité requise : 1 |
|||||||||
|
155 |
1633587Z01000 DURITE Plus d'informationsQuantité requise : 1 |
|||||||||
|
155 |
1633587Z03000 DURITE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/6/img/114966.jpg)
156 |
BOUCHON DE RADIATEUR ORIGINE PIAGGIO PORTER ESSENCE/DIESEL -1640187Z04000 Plus d'informationsQuantité requise : 1 |
|||||||||
|
199 |
JOINT |
|||||||||
|
216 |
COLLIER |
|||||||||
|
225 |
COLLIER |
|||||||||
|
226 |
SUPPORT |
|||||||||
|
229 |
PLAQUETTE |
|||||||||
|
230 |
1653787Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
|
231 |
1653887Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
|
233 |
RADIATEUR |
|||||||||
|
240 |
FAISC.CABLES |
|||||||||
|
246 |
SUPPORT |
|||||||||
|
257 |
VIS |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/3/img/65683.jpg)
258 |
RONDELLE PLATE (6.5X14X0.6) ORIGINE PIAGGIO COMMUN A LA GAMME -097734 Plus d'informationsQuantité requise : 4 |
|||||||||
|
259 |
PASSE-CABLE |
|||||||||
|
260 |
9165140616000 BOULON Plus d'informationsQuantité requise : 2 |
|||||||||
|
261 |
ECROU |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.jpg)
262 |
VIS TH (6X12) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -D9165140612 Plus d'informationsQuantité requise : 2 |
|||||||||
|
263 |
|
|||||||||
|
264 |
BOULON |
|||||||||
|
265 |
9004179163000 ECROU Plus d'informationsQuantité requise : 1 |
|||||||||
|
266 |
|
|||||||||
|
267 |
BOULON |
|||||||||
|
268 |
BOULON |
|||||||||
|
269 |
BOULON |
|||||||||
