Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

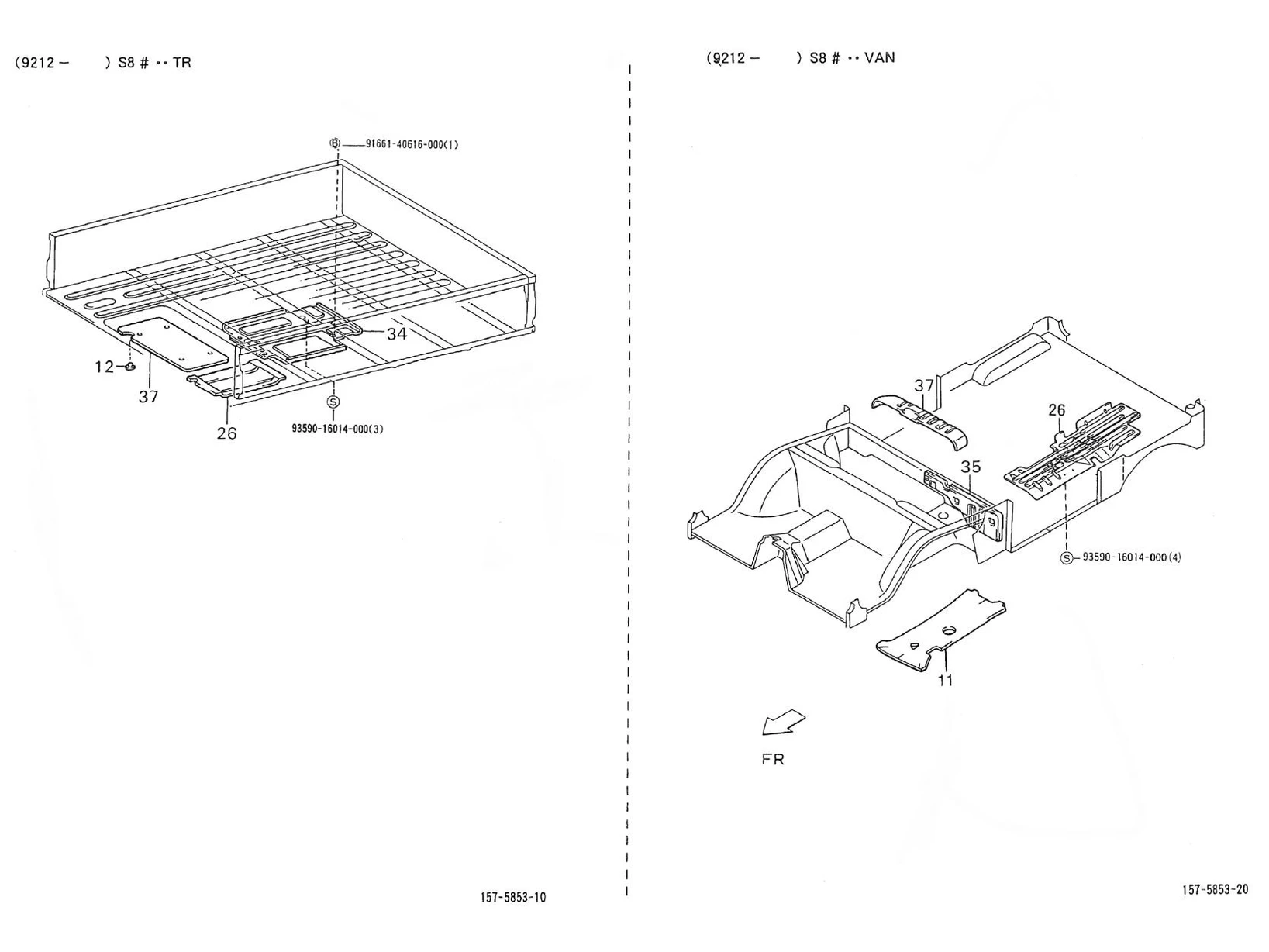

Chassis : 04.120 PANNEAUX ISOLANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.120.PNG)
11 |
5815187Z01000 ISOLATORE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
9004871101030 BOUCHON Plus d'informationsQuantité requise : 4 |
||||||
|
26 |
5832187Z01000 - PANNEAU INS. Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
PANNEAU |
||||||
|
26 |
Panneau insonorisant |
||||||
|
26 |
PROTECTION |
||||||
|
34 |
PANNEAU |
||||||
|
34 |
2614385 PANNEAU Plus d'informationsQuantité requise : 1 |
||||||
|
35 |
PANNEAU INS. |
||||||
|
37 |
PANNEAU INS. |
||||||
|
37 |
PANNEAU INS. |
||||||
|
37 |
PANNEAU INS. |
||||||
|
37 |
PANNEAU INS. |
||||||
|
37 |
Insonorisation |
||||||
|
38 |
CM288916 VIS Plus d'informationsQuantité requise : 1 |
||||||
|
39 |
9359016014000 VIS Plus d'informationsQuantité requise : 3 |
