Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

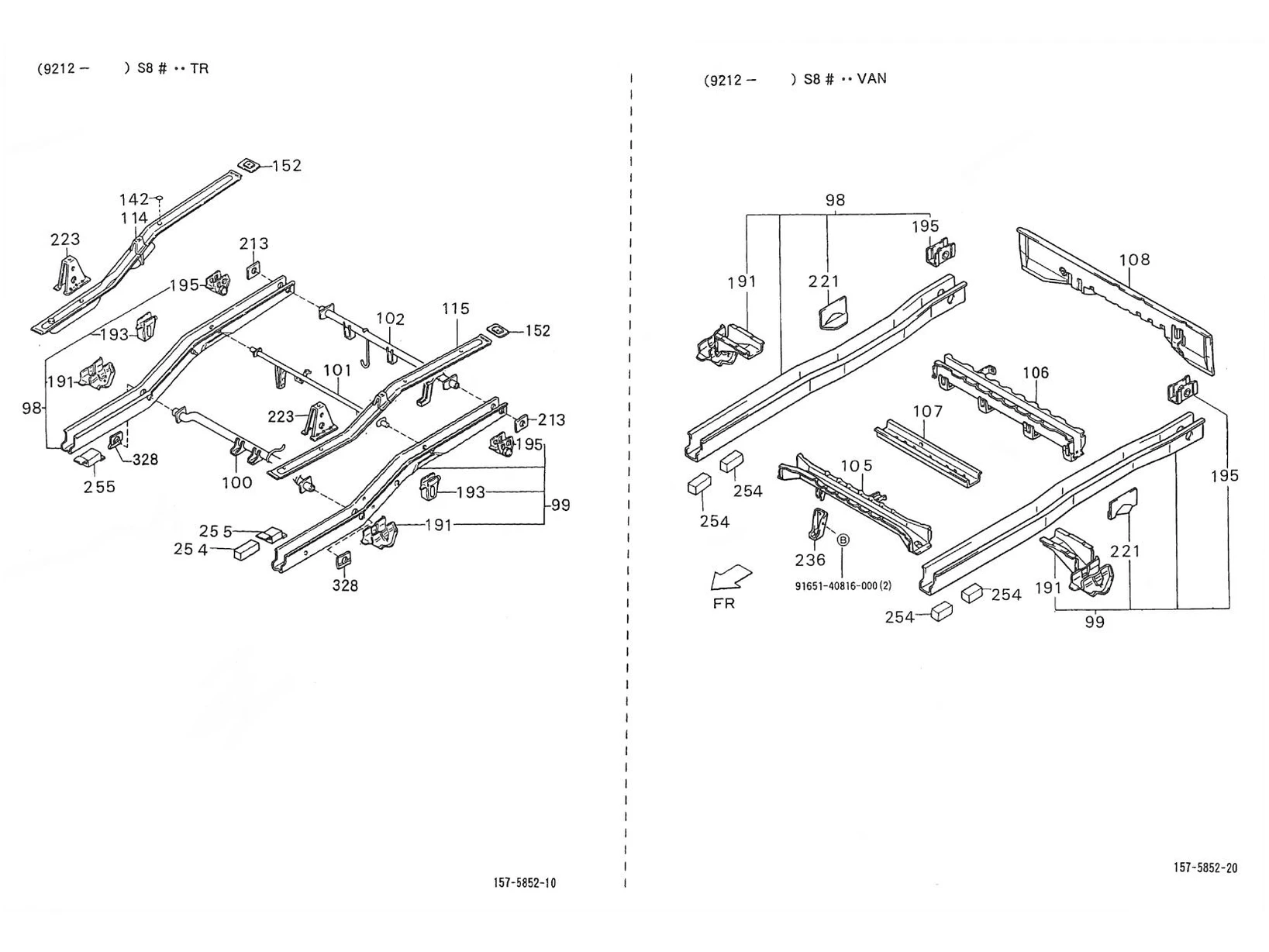

Chassis : 04.110 PANNEAU DE PLANCHER ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.110.PNG)
98 |
SUPPORT |
||||||
|
98 |
5760187Z02000 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
98 |
5760187Z03000 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
98 |
5760187Z20000 LONGHER POST D Plus d'informationsQuantité requise : 1 |
||||||
|
98 |
|
||||||
|
99 |
5760287Z01000 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
99 |
5760287Z02000 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
99 |
SUPPORT |
||||||
|
99 |
SUPPORT |
||||||
|
99 |
SUPPORT |
||||||
|
99 |
5760287Z24000 LONGHER POST S Plus d'informationsQuantité requise : 1 |
||||||
|
99 |
|
||||||
|
100 |
TRAVERSE |
||||||
|
100 |
TRAVERSE |
||||||
|
100 |
|
||||||
|
101 |
TRAVERSE |
||||||
|
101 |
5120287Z02000 TRAVERSE Plus d'informationsQuantité requise : 1 |
||||||
|
102 |
5120387Z02000 TRAVERSE Plus d'informationsQuantité requise : 1 |
||||||
|
102 |
TRAVERSE |
||||||
|
105 |
TRAVERSE |
||||||
|
105 |
TRAVERSE |
||||||
|
105 |
5760687Z04000 TRAVERSE Plus d'informationsQuantité requise : 1 |
||||||
|
105 |
|
||||||
|
106 |
D5760887Z035 TRAVERS Plus d'informationsQuantité requise : 1 |
||||||
|
106 |
TRAVERSE |
||||||
|
107 |
TRAVERSE |
||||||
|
107 |
TRAVERSE |
||||||
|
107 |
5760787Z05000 TRAVERSA Plus d'informationsQuantité requise : 1 |
||||||
|
107 |
TRAVERSE |
||||||
|
108 |
5707887Z01000 TRAVERSE Plus d'informationsQuantité requise : 1 |
||||||
|
114 |
FERMETURE DE LONGERON DROIT ORIGINE PIAGGIO PORTER 2020< -6159115- Plus d'informationsQuantité requise : 1 |
||||||
|
114 |
PLAQUE |
||||||
|
115 |
6147905 SERRURE Plus d'informationsQuantité requise : 1 |
||||||
|
142 |
9004871161000 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
|
152 |
5175787Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
191 |
SUPPORT |
||||||
|
191 |
SUPPORT |
||||||
|
191 |
SUPPORT |
||||||
|
193 |
SUPPORT |
||||||
|
195 |
5770187Z01000 SUPPORT Plus d'informationsQuantité requise : 2 |
||||||
|
195 |
SUPPORT |
||||||
|
195 |
5770387Z01000 ETRIER Plus d'informationsQuantité requise : 2 |
||||||
|
213 |
5133187Z01000 JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
221 |
PROTECTION |
||||||
|
223 |
5731787Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/2/6/0/img/114260.jpg)
236 |
SUPPORT CHASSIS ARRIERE ORIGINE PORTER -5836487Z01000 Plus d'informationsQuantité requise : 1 |
||||||
|
254 |
5118887Z01000 CONTREPOIDS Plus d'informationsQuantité requise : 1 |
||||||
|
254 |
CONTREPOIDS |
||||||
|
255 |
CONTREPOIDS |
||||||
|
328 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/5/img/110045.jpg)
329 |
VIS TH (8X16) AVEC RONDELLE ORIGINE PIAGGIO PORTER COMMUN A LA GAMME -9165140816000 Plus d'informationsQuantité requise : 2 |
