Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

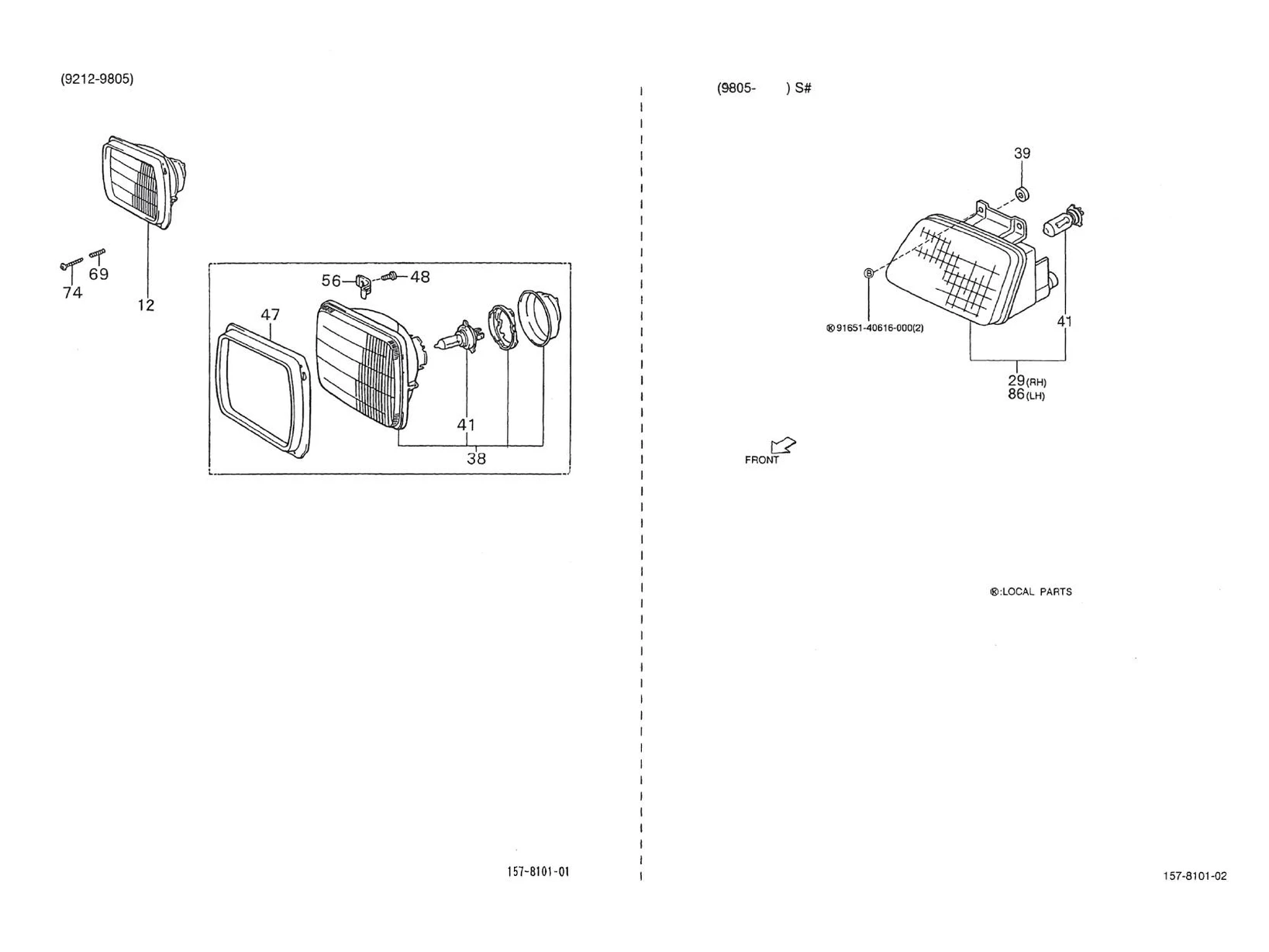

Circuit electrique : 05.010 PROJECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.010.PNG)
12 |
PHARE/OPTIQUE DROIT ORIGINE PIAGGIO PORTER -8111087Z01000- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
OPTIQUE/PHARE/PROJECTEUR HALOGEN ORIGINE PIAGGIO PORTER -8111087Z04000- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
8111087Z05000 PROJECTEUR AVD Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
PHARE AVG DROITE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/1/3/4/img/122134.jpg)
29 |
OPTIQUE/PHARE/PROJECTEUR AVANT DROIT ORIGINE PIAGGIO PORTER 1998>2008 (FRANCE) -8111087Z11000 Plus d'informationsQuantité requise : 1 |
||||||
|
38 |
PHARE/OPTIQUE DROIT ORIGINE PIAGGIO PORTER -8111087Z01000- Plus d'informationsQuantité requise : 2 |
||||||
|
38 |
OPTIQUE/PHARE/PROJECTEUR HALOGEN ORIGINE PIAGGIO PORTER -8111087Z04000- Plus d'informationsQuantité requise : 2 |
||||||
|
38 |
8111087Z05000 PROJECTEUR AVD Plus d'informationsQuantité requise : 2 |
||||||
|
39 |
|
||||||
|
41 |
AMPOULE/LAMPE 12V 45/40W R2 P45T ORIGINE PIAGGIO COMMUN A LA GAMME -129952 Plus d'informationsQuantité requise : 2 |
||||||
|
41 |
AMPOULE |
||||||
|
47 |
8111187Z01000 - CIRCLIPS Plus d'informationsQuantité requise : 2 |
||||||
|
48 |
VIS |
||||||
|
56 |
SUPPORT |
||||||
|
69 |
RESSORT |
||||||
|
74 |
8113187Z01000 - VIS Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/2/8/5/img/123285.jpg)
86 |
OPTIQUE/PHARE/PROJECTEUR GAUCHE ORIGINE PIAGGIO PORTER 1998>2009 (ANGLO-SAXON) -8115087Z04000- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/1/9/0/img/122190.jpg)
86 |
OPTIQUE/PHARE/PROJECTEUR AVANT GAUCHE ORIGINE PIAGGIO PORTER 1998>2008 (FRANCE) -8115087Z05000 Plus d'informationsQuantité requise : 1 |
||||||
|
87 |
9165140616000 BOULON Plus d'informationsQuantité requise : 2 |
