Eclatés de véhicule - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

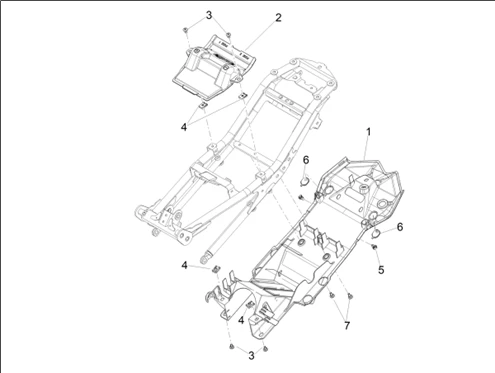

Carrosserie : 02.13 LOGEMENT SOUS-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_02.13.png)
1 |
2B013547 - FERMETURE INF. PORTE-SELLE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B010987 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
5 |
AGRAPHE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -D9004468091 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
2B011872 - BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
2B011940 - VIS BRIDE Plus d'informationsQuantité requise : 2 |
