Eclatés de véhicule - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

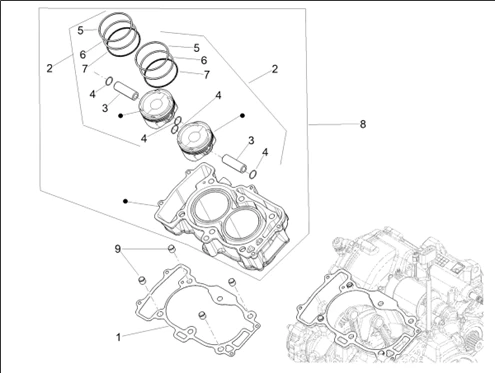

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_03.15.png)
1 |
1A020869 - JOINT BASE CYLINDRE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
SP1A0213300B - PISTON ASSY CLASS B-SPD Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
SP1A0213300A - PISTON ASSY CLASS A -SPD Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
1A021334 - AXE Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
1A012388 - JONC AXE DE PISTON Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
1A021331 - PREMIèRE BAGUE DE COMPRESSION Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
1A021332 - DEUXIèME BAGUE DE COMPRESSION Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
1A021333 - SEGMENT RACLEUR D'HUILE Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
SP1A020853 - CYLINDER AND PISTONS GROUP Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
1A024236 - GRAIN DE RéFéRENCE Plus d'informationsQuantité requise : 1 |
