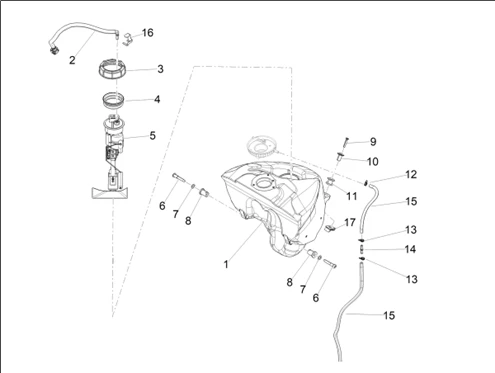

Réservoir : 09.01 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_09.01.png)
1 |
1B012293 - RESERVOIR ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B0108719 - TUYAU ESSENCE, CPL. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
3 |
ECROU/BAGUE POMPE ORIGINE PIAGGIO COMMUN A LA GAMME -576546 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
JOINT DE JAUGE A ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -656003 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2B010152 - POMPE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
2B010824 - TIGE FILETAGE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
7 |
RONDELLE CRANTEE (10.3X17X2) ORIGINE PIAGGIO COMMUN A LA GAMME -012543 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
2B011689 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
|
||||||
|
10 |
2B011283 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
2B012140 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
12 |
COLLIER DE SERRAGE DURITE (8X11) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002904- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
13 |
COLLIER DE SERRAGE DURITE (9,4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002905 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
2B009598 - PIPE FITTING Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
CM338705 - TUYAU VAPEURS CARBURANT Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
2B011377 - PLAQUE DE TUYAU D'ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
