Eclatés de véhicule - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

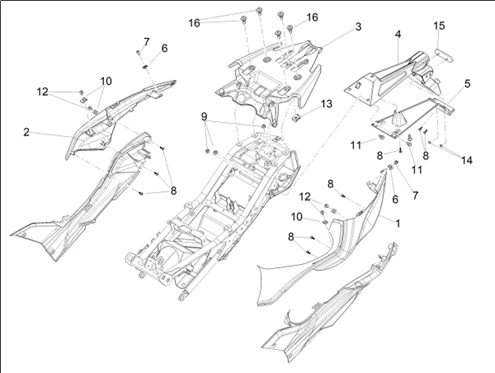

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_02.14.png)
1 |
SP2B013540000A23 - QUEUE G, ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2B013540 - BAVETTE G Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
SP2B013540000HL - QUEUE G, GRISE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
SP2B013541000A23 - QUEUE D, ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B013541 - BAVETTE D Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
SP2B013541000HL - QUEUE D, GRIS M. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
SP2B013542000NL - POIGNEE PASS.NOIRE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B013542 - POIGNEE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2B012612 - PORTE-PLAQUE SUP. Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2B012624 - BLOCAGE SUPPORT PLAQUE D'IMMATRICULATIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
6 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -00G04401462- Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
2B012700 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
8 |
VIS TORX (4,2X13) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178603 Plus d'informationsQuantité requise : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
9 |
ECROU BRIDE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -241936 Plus d'informationsQuantité requise : 3 |
||||||
|
10 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -00G04401462- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
11 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201- Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
2B012700 - VIS Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
13 |
ECROU TOLE (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -575268- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
14 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351- Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
1D005114 - CATADIOPTRE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
2B011713 - VIS Plus d'informationsQuantité requise : 5 |
