Eclatés de véhicule - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

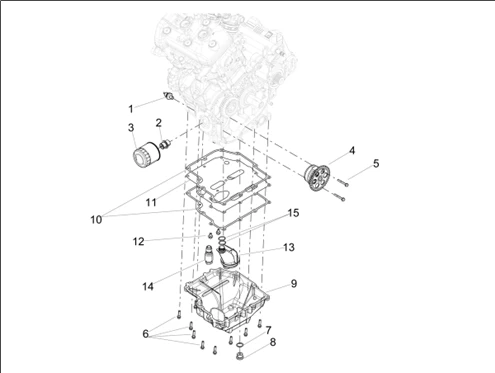

Moteur : 03.19 LUBRIFICATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_03.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
1 |
CAPTEUR PRESSION D'HUILE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 POUR 1200 GRISO, NORGE, STELVIO, SPORT) -1A024308R Plus d'informationsQuantité requise : 1 |
||||||
2 |
1A026669 - VIS SPECIALE DE FILTRE A HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/4/9/img/198249.jpg)
3 |
FILTRE A HUILE MOTO ORIGINE PIAGGIO APRILIA 660 RS, TUONO 2020>, 1000 RSV-4 2011>, 1000 TUONO V4 2011>, 1100 TUONO 2015>, 1100 RSV-4 2019>RS 457 2024 -1A023538 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
1A022501 - POMPE HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1A024063 - FLANGED HEXAGONAL HEAD SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
1A024028 - VIS BRIDE Plus d'informationsQuantité requise : 7 |
||||||
|
7 |
JOINT BOUCHON HUILE ORIGINE APRILIA 457 RS / TUONO -1A024245 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1A023933 - BOUCHON MAGNéTIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
1A020843 - CARTER A HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
1A020873 - JOINT CARTER HUILE Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
1A020872 - HUILE CLOISON Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
1A024064 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
1A020857 - SUCTION STRAINER ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
1A020916 - OIL PRESSURE ADJUSTING VALVE ASSY Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
1A024240 - BAGUE D'éTANCHéITé Plus d'informationsQuantité requise : 2 |
Tous les éclatés de ce véhicule
-
