Eclatés de véhicule - APRILIA TUONO 457 4T 8V E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

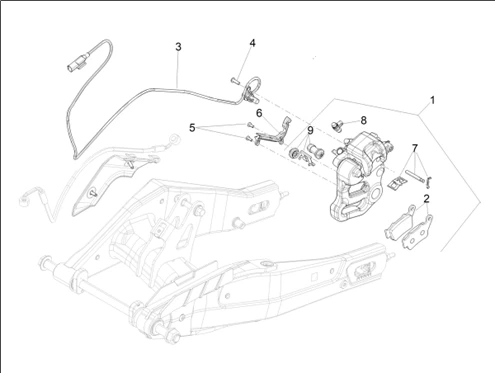

Système de freinage : 06.04 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1307/Tuono_457_4T_8V_E5_ABS_2024_(EMEA)_06.04.png)
1 |
2B009998 - PINCE FREIN AR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/7/5/1/img/212751.jpg)
2 |
PLAQUETTE DE FREIN ARRIERE ORIGINE APRILIA RS 457 -2B013121- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
3 |
CAPTEUR ABS ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY -1D003350 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/1/4/6/img/174146.jpg)
4 |
VIS BTR TETE BOMBEE (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -1C005394 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
664194 METRICAL SCREW CYLINDRICAL HEAD WITH CR Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
2B011273 - GUIDE CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
2B012740 - KIT AXES+RESSORT+GOUPILLE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
2B012741 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
2B012822 - PARE-POUSSIERE Plus d'informationsQuantité requise : 1 |
