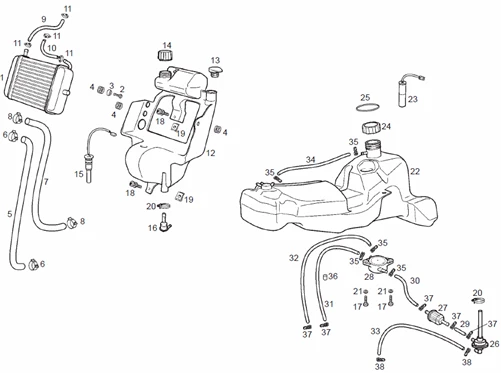

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)

	P2R reference	195334
	Maker reference	00G03804011

00G03804011 - RADIATEUR

	P2R reference	63696
	Maker reference	000120612005

00012061200 - VIS A TETE RONDE A FENTES C

	P2R reference	188393
	Maker reference	00D01500551

00D01500551 - CUVETTE

	P2R reference	63673
	Maker reference	000089150205

SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020-

	P2R reference	195335
	Maker reference	00G03801041

00G03801041 - TUYAU

	P2R reference	64107
	Maker reference	00G03801091

00G03801091 - COLLIER

	P2R reference	195336
	Maker reference	00G03803021

00G03803021 - TUYAU

	P2R reference	63670
	Maker reference	000082045005

00008204500 - COLLIER COBRA 21/8 W4

	P2R reference	195337
	Maker reference	00G03803491

00G03803491 - TUYAU

	P2R reference	195338
	Maker reference	00G03803521

00G03803521 - TUYAU

	P2R reference	64108
	Maker reference	00G03801701

00G03801701 - BRIDE TUBE RESPIRATION R?SERVO

	P2R reference	195339
	Maker reference	00G03703081

00G03703081 - RESERVOIR D' EAU / HUILE

	P2R reference	64821
	Maker reference	00H03702061

OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 125 SC/APRILIA 50 RS 2006>2010 -00H03702061

	P2R reference	67743
	Maker reference	623673

COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673-

	P2R reference	70338
	Maker reference	867531

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR/APRILIA 50 SX, RX 2006> -867531

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	63646
	Maker reference	000040616005

00004061600 - VIS

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	63932
	Maker reference	00G00400501

00G00400501 - COLLIER

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	195340
	Maker reference	00G00414011

00G00414011 - RESERVOIR ESSENCE

	P2R reference	195341
	Maker reference	00G04309181

00G04309181 - FLOTTEUR ESSENCE

	P2R reference	194882
	Maker reference	00G00402131

00G00402131 - BOUCHON RESERV.ESSENCE V.B

	P2R reference	187313
	Maker reference	00G06200051

00G06200051 - JOINT

	P2R reference	68473
	Maker reference	674594

FUEL TAP "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 1998>, 50 TYPHOON 2010>, ZIP 2000>, 125 VESPA LX 2005>, VESPA GTS 2007>/APRILIA 50-125 SPORT-CITY 2008> -674594

	P2R reference	194884
	Maker reference	00G00400611

00G00400611 - FILTRE A ESSENCE

	P2R reference	73126
	Maker reference	CM120903

FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903

	P2R reference	195342
	Maker reference	00G00404321

00G00404321 - TUYAU

	P2R reference	189221
	Maker reference	00F00408321

00F00408321 - TUBO GRIF.GAS.-FILTR.D10X5X35

	P2R reference	195343
	Maker reference	00G06205061

00G06205061 - TUYAU

	P2R reference	194265
	Maker reference	00G03701111

00G03701111 - TUYAU SORTIE HUILE VAMOS-K

	P2R reference	195344
	Maker reference	00G00403321

00G00403321 - TUYAU

	P2R reference	195345
	Maker reference	00G03701461

00G03701461 - TUYAU

	P2R reference	64817
	Maker reference	00H03701131

00H03701131 - COLLIER

	P2R reference	195346
	Maker reference	00G06205081

00G06205081 - ENTRETOISE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64241
	Maker reference	00H00400501

00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE
