Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

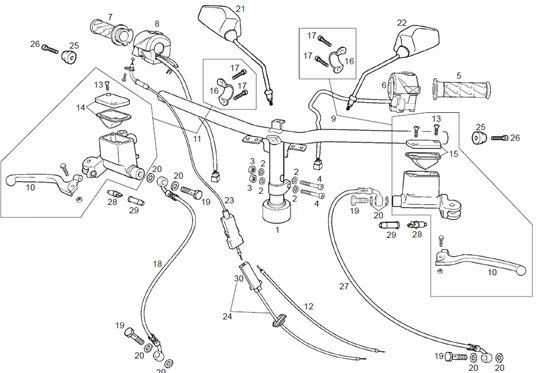

Guidon/direction : 6 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1154/GP1_50_Race_2ver_E2_2005-2007_(EMEA)_6.png)
1 |
00G00909011 - GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
2 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
3 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
4 |
00004184500 - VIS More informationQuantity required : 1 |
||||||
|
5 |
GU32603010 - POIGNEE GC. More informationQuantity required : 1 |
||||||
|
6 |
86167R - CTO.CONMUTAD ARRANQ.ELECT.GP1 More informationQuantity required : 1 |
||||||
|
6 |
86166R - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
7 |
86142R - COMMANDE GAZ More informationQuantity required : 1 |
||||||
|
8 |
86167R - CTO.CONMUTAD ARRANQ.ELECT.GP1 More informationQuantity required : 1 |
||||||
|
8 |
86166R - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
9 |
00G01100181 - POMPE DE FREIN More informationQuantity required : 1 |
||||||
|
10 |
00G00903201 - FREIN D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
11 |
00G02100081 - POMPE DE FREIN AV. More informationQuantity required : 1 |
||||||
|
12 |
846633 - TRANSMISTION GAZ More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
|
14 |
FRONT/REAR BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> 862534- More informationQuantity required : 1 |
||||||
|
15 |
00G05601201 - R-ENSEM. KIT REPAR. More informationQuantity required : 1 |
||||||
|
16 |
00H02100901 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
17 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
|
18 |
00G00907751 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
19 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
20 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
|
21 |
00G02213671 - RECHT SPIEGEL More informationQuantity required : 1 |
||||||
|
22 |
00G04614921 - CTO.ESPEJO RETR.IZQU.GP1 More informationQuantity required : 1 |
||||||
|
23 |
00G00900191 - CABLE DE GAZ More informationQuantity required : 1 |
||||||
|
24 |
00G00902191 - CABLE DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/9/img/63649.jpg)
26 |
SCREW - FOR OIL PUMP HOUSING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00004154000- More informationQuantity required : 1 |
||||||
|
27 |
00G00900851 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
28 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/4/img/63654.jpg)
29 |
00005010760 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/1/img/63951.jpg)
30 |
00G00901861 - DEDOBLATEUR More informationQuantity required : 1 |
