Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

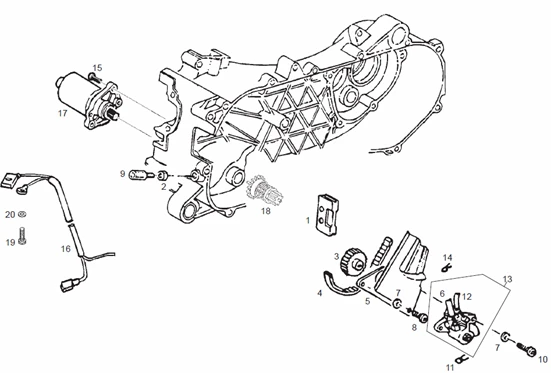

Moteur : 23 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1154/GP1_50_Race_2ver_E2_2005-2007_(EMEA)_23.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/8/img/66178.jpg)
1 |
287021 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
2 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/7/img/66217.jpg)
3 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG MOTEUR H2O -289262- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/1/img/66161.jpg)
4 |
OIL PUMP BELT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -286162- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/2/img/66162.jpg)
5 |
OIL PUMP PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -286163- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/3/img/73043.jpg)
6 |
OIL HOSE-FROM TANK TO OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM101509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
7 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
8 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/5/img/65745.jpg)
9 |
SCREW - FOR OIL PUMP CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -146197- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
10 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
11 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/4/img/73044.jpg)
12 |
HOSE FROM OIL PUMP TO CARB "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM101605 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/0/img/68580.jpg)
13 |
OIL PUMP "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, FLY, LIBERTY 2000> /APRILIA 50 SR H2O 2003>/GILERA 50 STALKER, RUNNER, DNA 2000> -82605R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/5/img/66705.jpg)
14 |
486149 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
15 |
031091 - VIS More informationQuantity required : 1 |
||||||
16 |
639856 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/1/img/68531.jpg)
17 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 50 2 STROKE -82530R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/4/img/66164.jpg)
18 |
STARTER MOTOR GEAR "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -286174 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/9/img/65449.jpg)
19 |
018644 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
20 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 1 |
