Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

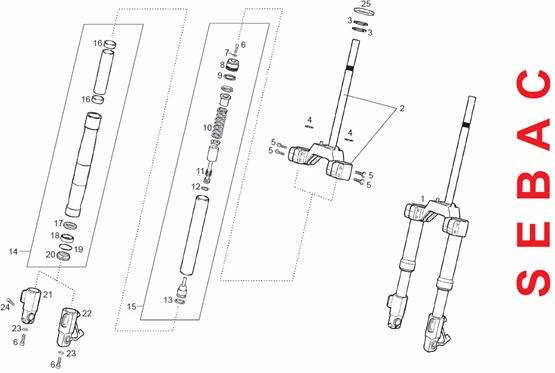

Suspensions - roues : 02A FOURCHE AV. SEBAC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1154/GP1_50_Race_2ver_E2_2005-2007_(EMEA)_02A.png)
1 |
00G00212001 - FOURCHE AVANT More informationQuantity required : 1 |
||||||
|
2 |
00G00212001 - FOURCHE AVANT More informationQuantity required : 1 |
||||||
|
3 |
00H00206101 - RONDELLE FIX PIVOT More informationQuantity required : 1 |
||||||
|
4 |
00G00202601 - ANNEAU More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
00000004835 - VIS A TETE ALLEN 8M125X35. More informationQuantity required : 1 |
||||||
|
7 |
00G02000851 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
00G02003541 - BOUCHON More informationQuantity required : 1 |
||||||
|
9 |
00G00200521 - ANNEAU More informationQuantity required : 1 |
||||||
|
10 |
00G00207171 - RESSORT More informationQuantity required : 1 |
||||||
|
11 |
00G00203881 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
00G00201501 - ANNEAU More informationQuantity required : 1 |
||||||
|
13 |
00H00202691 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
00G02001041 - TUBE DE FOURCHE More informationQuantity required : 1 |
||||||
|
15 |
00G00203531 - TUBE DE FOURCHE HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
16 |
00H00205151 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
17 |
00G00203441 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
00G00204471 - R-ANNEAU FOURREAU FOURCHE More informationQuantity required : 1 |
||||||
|
19 |
00G00201601 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/3/img/67413.jpg)
20 |
FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127- More informationQuantity required : 1 |
||||||
|
21 |
00G02000921 - R-BOUCHON EXTRMIT DROITE FOU More informationQuantity required : 1 |
||||||
|
22 |
00G02001921 - R-BOUCHON EXTRMIT GAUCHE FOU More informationQuantity required : 1 |
||||||
|
23 |
00034001002 - RONDELLE FREIN More informationQuantity required : 1 |
||||||
|
24 |
00000004830 - BOULON TETE HEX.8M125X30 D933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/4/img/63924.jpg)
25 |
NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G00200112 More informationQuantity required : 1 |
