Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

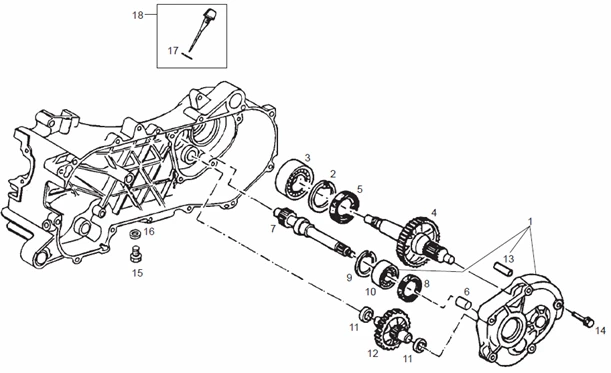

Moteur : 22 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1154/GP1_50_Race_2ver_E2_2005-2007_(EMEA)_22.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/3/9/img/66739.jpg)
1 |
TRANSMISSION REDUCER COVER "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -4874805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
2 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/9/img/66459.jpg)
3 |
DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735- More informationQuantity required : 1 |
||||||
4 |
8448615 - AXE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/8/img/66558.jpg)
5 |
GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/8/img/66548.jpg)
6 |
COMPENSATOR RING ON MAIN PULLEY AXLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTERS 50 CC -478197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/2/img/66582.jpg)
7 |
FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 50 ZIP 2000>, TYPHOON 2000>2010, VESPA LX 2000>, VESPA-S 2007>, SPRINT 2014>/APRILIA 50 MOJITO 2004>2010 -4795715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/0/img/66590.jpg)
8 |
GASKET RING- CLUTCH PULLEY AXLE "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/ GILERA 50 STALKER, RUNNER/APRILIA 50 SR,SPORT CITY ONE/VESPA LX, SPRINT, PRMIAVERA -480066- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/4/img/66604.jpg)
9 |
480953 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
10 |
DRIVE SHAFT BEARING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC -435363- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/6/img/66196.jpg)
11 |
WASHER FOR SECONDARY TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288639- More informationQuantity required : 1 |
||||||
|
12 |
8448635 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
13 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
14 |
1A011120 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
15 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
16 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
17 |
827085 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
18 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130- More informationQuantity required : 1 |
