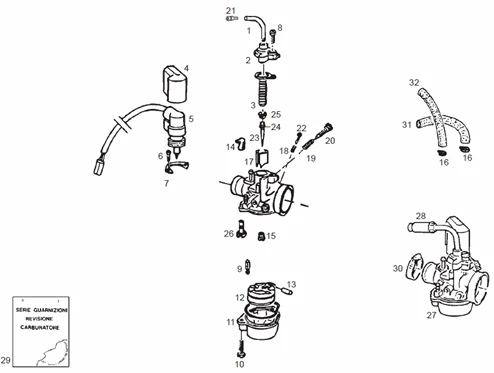

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)

	P2R reference	65699
	Maker reference	113903

ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903-

	P2R reference	66415
	Maker reference	431654

431654 - COUVERCLE CARBURATEUR QUARTZ

	P2R reference	66626
	Maker reference	482942

SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882

	P2R reference	66687
	Maker reference	485671

485671 - COIFFE

	P2R reference	73087
	Maker reference	CM105905

CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX, PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER, DNA -CM105905-

	P2R reference	66228
	Maker reference	289575

289575 - VIS

	P2R reference	66201
	Maker reference	288863

CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863-

	P2R reference	66202
	Maker reference	288865

288865 - VIS

	P2R reference	73147
	Maker reference	CM128502

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER, DNA/APRILIA 50 RS, RX, SX, MOJITO -CM128502-

	P2R reference	66200
	Maker reference	288862

288862 - VIS

	P2R reference	66664
	Maker reference	484704

CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 ZIP, NRG, LIBERTY, FLY, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 RS, SR -484704-

	P2R reference	66625
	Maker reference	482916

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916-

	P2R reference	66209
	Maker reference	288881

288881 - AXE FLOTTEUR

	P2R reference	66485
	Maker reference	436206

OIL VALVE (ON CARB) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -436206

	P2R reference	187721
	Maker reference	00G03208031

00G03208031 - GLICEUR PRINCIPAL55

	P2R reference	73045
	Maker reference	CM101704

MAIN JET Ø 53 MAXIMUM "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -CM101704-

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901

	P2R reference	73181
	Maker reference	CM141710

CARB THROTTLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM141710

	P2R reference	65670
	Maker reference	0852855

085285 - RESSORT

	P2R reference	65751
	Maker reference	152608

152608 - VIS

	P2R reference	68725
	Maker reference	828074

SCREW - FOR INJECTION BODY ADJUSTING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -828074-

	P2R reference	66203
	Maker reference	288868

SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868

	P2R reference	73102
	Maker reference	CM107701

SCREW - CARB AIR SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM107701

	P2R reference	73100
	Maker reference	CM107510

NEEDLE FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC 2STROKE -CM107510

	P2R reference	195402
	Maker reference	00G03209431

00G03209431 - AGUJA PULVERIZ. A-14 GP1 SUIZA

	P2R reference	66204
	Maker reference	288872

NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872

	P2R reference	66205
	Maker reference	288873

CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873-

	P2R reference	73067
	Maker reference	CM102103

IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM102103-

	P2R reference	69533
	Maker reference	847562

847562 - CARBURATEUR

	P2R reference	195403
	Maker reference	00G03245011

00G03245011 - R-CTO KIT CARBURADOR GP1

	P2R reference	70587
	Maker reference	875551

875551 - CAPUCHON

	P2R reference	66972
	Maker reference	498409

DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409

	P2R reference	149124
	Maker reference	1A006280

1A006280 - COLLIER

	P2R reference	149124
	Maker reference	842202

1A006280 - COLLIER

	P2R reference	66781
	Maker reference	488139

488139 - TUBE

	P2R reference	66657
	Maker reference	484260

484260 - TUYAU
