Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

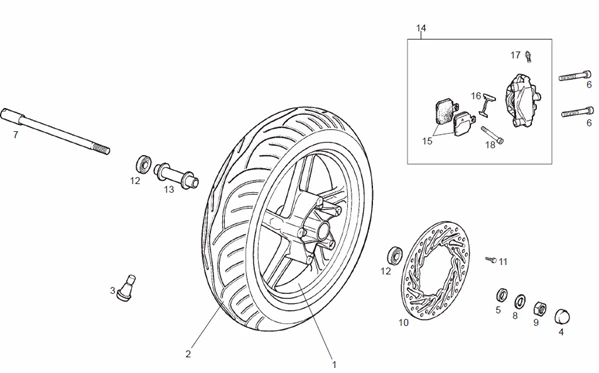

Suspensions - roues : 10 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1154/GP1_50_Race_2ver_E2_2005-2007_(EMEA)_10.png)
1 |
00G01210951 - JANTE DE DEVANT More informationQuantity required : 1 |
||||||
|
2 |
00G01213111 - PNEU More informationQuantity required : 1 |
||||||
|
2 |
00G01215111 - REIFEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/2/5/img/64425.jpg)
4 |
FRONT WHEEL GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01201331 More informationQuantity required : 1 |
||||||
|
5 |
00H01202291 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/6/img/63566.jpg)
6 |
00000004160 - VIS More informationQuantity required : 1 |
||||||
|
7 |
00G01202271 - AXE ROUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
8 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
9 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
|
10 |
00G01207021 - DISQUE DE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
11 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
12 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345- More informationQuantity required : 1 |
||||||
|
13 |
00G04700151 - ENTRETOISE DE ROULEMENT More informationQuantity required : 1 |
||||||
|
14 |
00H01207191 - ENSEMBLE PINCE FREIN More informationQuantity required : 1 |
||||||
|
15 |
00H04704141 - COUPLE PLAQUETTES FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/3/1/img/64931.jpg)
16 |
00H04700171 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/3/0/img/64930.jpg)
17 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010, 125 SC -00H04700121 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/3/7/img/64937.jpg)
18 |
00H04703171 - VIS More informationQuantity required : 1 |
